KY-300 Hydraulic Explortation Drilling Rig For Metal Mine
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: KY-300 Hydraulic Explortation Drilling Rig For Metal Mine
1. Brief introductions of KY-300 hydraulic exploration drilling rig for metal mine
KY-300 hydraulic exploration drilling rig for metal mine is suitable for drilling at any angle in the tunnel or surface. It is small in size, light in weight, convenient to install and operate with adjustable speed and good linkage performance.
2. Features of KY-300 Full Hydraulic Prospecting Drilling Rig
1. Small size, light weight, easy installation.

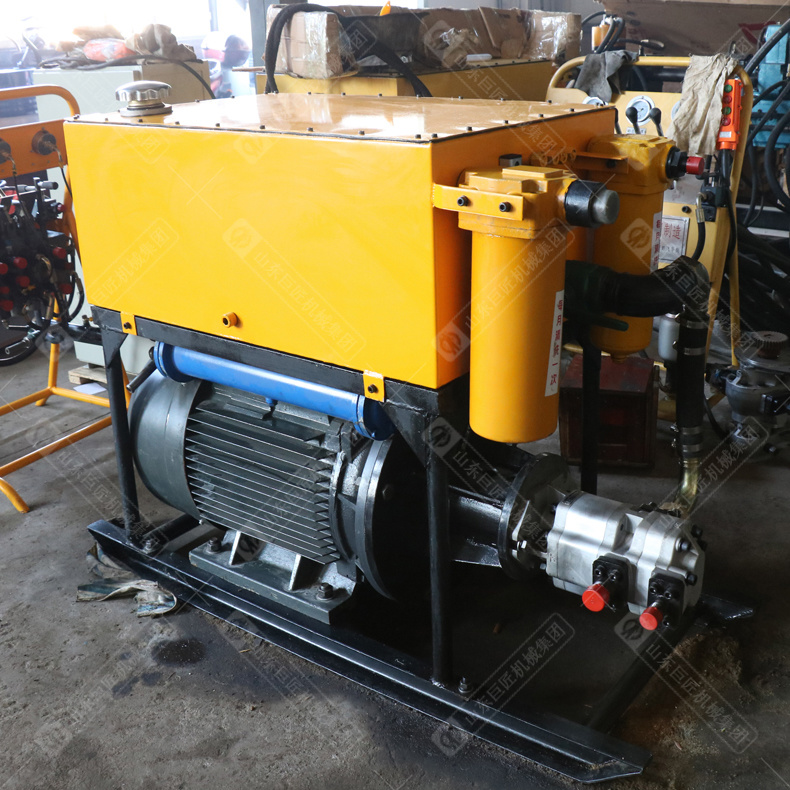

2. It adopts a full hydraulic power head structure, which is composed of main engine, pump station and console. It has good disassembly performance and is easy to disassemble and transport.
3. It can be put into production in the original transportation and prospecting roadway, which can protect the overall structure of the mine.
4. The layout of the drilling rig is flexible, and the mechanized twisting and unloading of the drill pipe reduces the labor intensity of the workers and improves the work efficiency.
5. The box-type feeding frame is adopted, the gripper is tightened, the power head is rotated for drilling, and the oil cylinder is used to pull the drilling tool, which can save the heavy drilling tower.
6. A manual variable motor is used to drive the spindle to rotate, with a wide range of stepless speed regulation, suitable for high-speed drilling of alloy steel and low-speed drilling of hard alloy.
7. Centralized console for oil pump, water pump and power supply.
8. With linkage function, centralized control through the operation console, simple and safe, easy to operate, safe and reliable.
9. With the hollow shaft design, the length of the drill rod is not limited by the stroke given by the drilling rig. Drilling at any inclination angle in the 360° tunnel, Φ33-Φ43 drill pipes can be used on the same machine, and it only takes 15 minutes to replace them.
10. Imported oil gauge line, which withstands high pressure and is soft, reduces the high-pressure oil pulse force, makes the pointer of the hydraulic oil gauge more stable, and can detect changes in the formation and rock in the hole in time.
11. Special custom-made oil temperature cooler, high-pressure oil cooling fast, low-temperature use, can protect the service life of motors, oil pumps, and rubber seals.
12. A shift of 2 people can operate skillfully within 2-5 days.
3. Specifications of KY-300 hydraulic exploration drilling rig for metal mine
Model
KY-300
Drilling diameter (mm)
φ37
φ47
Drill pipe diameter (mm)
φ33
φ43
Drilling depth (m)
300
240
Drill pipe length (mm)
1500
Drilling angle (°)
0-360
Spindle speed (r/min)
720-1800
Spindle output torque (N.m)
90-320
Feed distance (mm)
900
Rated pulling force (KN)
60
Rated pulling speed (m/s)
＞0.3
Oil supply method
Double gear pump
Oil pump model
CBF-F80/10
Displacement (ml)
Front Pump 80
Rear Pump 10
System pressure (Mpa)
Front Pump 16
Rear pump 12
Hydraulic oil type
Anti-wear hydraulic oil
YB-N46 (summer)/YB-N32 (winter)
Hydraulic Motor Model
Manual variable motor L6V80
Hydraulic motor power (kW)
37
Mud Pump Model
Variable Mud Pump BWJ-80
Mud Pump Motor
MN2-132S-4
Motor power (kW)
5.5
Flow (l/min)
80
Weight
Mainframe weight (kg)
380
Operating table (kg)
60
Power vehicle (kg)
450
Size
Host size (mm)
1600*400*300
Operating table size (mm)
610*1050*530
Power car size (mm)
1340*1010*560
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
