KY-250 Hydraulic Explortation Drilling Rig For Metal Mine
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: KY-250 Hydraulic Explortation Drilling Rig For Metal Mine
1. Brief introductions of KY-250 hydraulic exploration drilling rig for metal mine
KY-250 hydraulic exploration drilling rig is a new type of full hydraulic drilling rig with advanced performance and wide application.
2. Features of KY-250 hydraulic exploration drilling rig
1. Small size, light weight, easy installation.

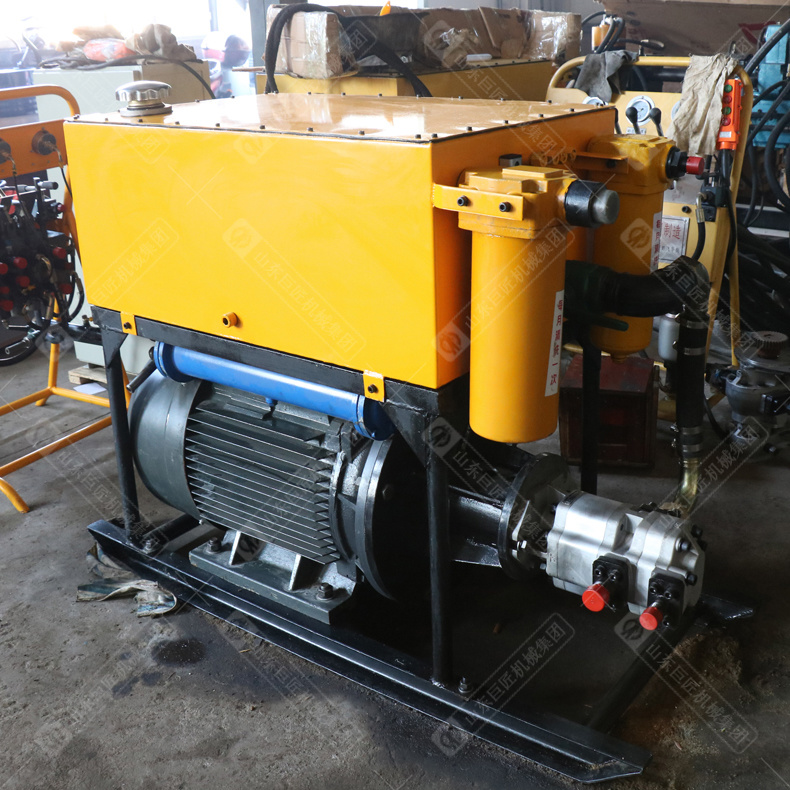

2. It adopts a full hydraulic power head structure, which is composed of three parts: the main engine, the pump station and the console. It has good disassembly performance and is easy to disassemble and transport.
3. It can be put into production in the original transportation and prospecting roadway, which can protect the overall structure of the mine.
4. The layout of the drilling rig is flexible, and the mechanized twisting and unloading of the drill pipe reduces the labor intensity of the workers and improves the work efficiency.
5. The box-type feeding frame is adopted, the gripper is tightened, the power head is rotated for drilling, and the oil cylinder is used to pull the drilling tool, which can save the heavy drilling tower.
6. A manual variable motor is used to drive the spindle to rotate, with a wide range of stepless speed regulation, suitable for high-speed drilling of alloy steel and low-speed drilling of hard alloy.
7. It has linkage function, centralized control through the operation console, simple and safe, easy to operate, safe and reliable.
8. With the hollow shaft design, the length of the drill rod is not limited by the stroke given by the drilling rig. 360° arbitrary inclination drilling, also can be used for surface 0-90 degree drilling. Φ33-Φ43 drill pipes can be used in the same machine, and it only takes 15 minutes to replace them.
9. A shift of 2 people can operate skillfully within 2-5 days.
3. Specifications of KY-250 hydraulic exploration drilling rig for metal mine
Model
KY-250
Drilling diameter (mm)
φ37
φ47
Drill pipe diameter (mm)
φ33
φ43
Drilling depth (m)
250
200
Drilling angle (°)
0-360
Spindle speed (r/min)
400-1400
Spindle output torque (N.m)
150-400
Progress (mm)
850
Rated pulling force (KN)
40
Rated pulling speed (m/s)
＞0.3
Oil supply method
Double gear pump
Oil pump model
CBF-F71/10
Displacement (ml)
Front pump 71
Rear pump 10
System pressure (Mpa)
Front pump 16
Rear pump 12
Hydraulic oil type
Anti-wear hydraulic oil
YB-N46 (summer)/YB-N32 (winter)
Hydraulic motor model
Manual variable motor A6V80MA
Motor power (KW)
30
Weight
Host weight (kg)
275
Operating table (kg)
86
Power car (kg)
420
Size
Host size (mm)
1600*400*300
Operating table size (mm)
610*1150*530
Power car size (mm)
1330*900*450
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
