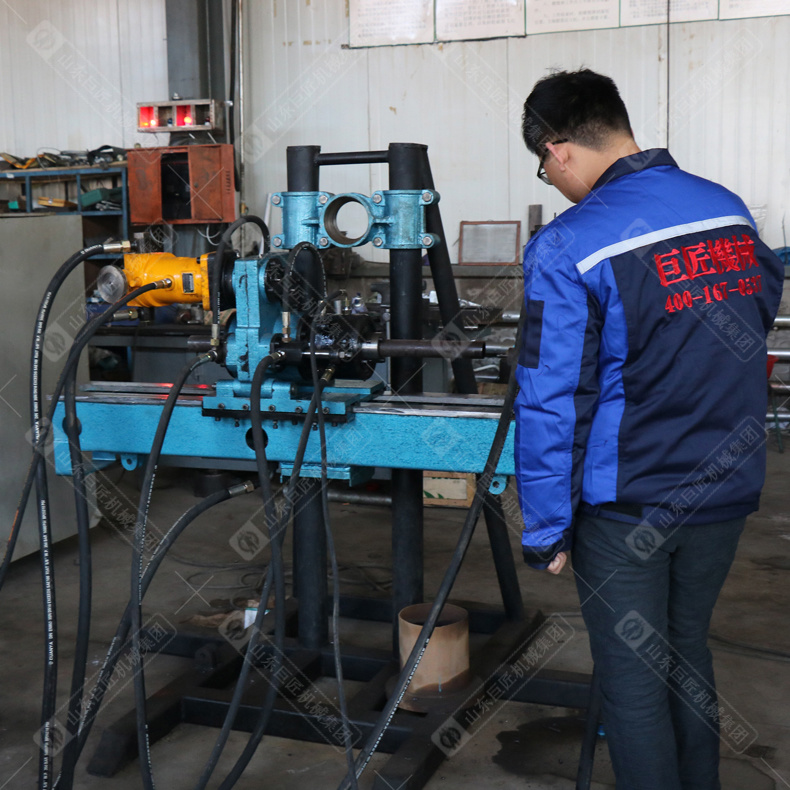

KY-200 Hydraulic Explortation Drilling Rig For Metal Mine
- Commodity name: KY-200 Hydraulic Explortation Drilling Rig For Metal Mine
1. Brief introductions of KY-200 hydraulic exploration drilling rig for metal mine
KY-200 hydraulic exploration drilling rig is a new type of full-hydraulic drilling rig with advanced performance and wide range of applications. It is used for drilling at any inclination angle in mine tunnels, and can also be used for engineering drilling.
2. Features of KY-200 hydraulic exploration drilling rig
1. Small size, light weight, easy installation.
2. It adopts a full hydraulic power head structure, which is composed of three parts: the main engine, the pump station and the console. It has good disassembly performance and is easy to disassemble and transport.
3. It can be put into production in the original transportation and prospecting roadway, which can protect the overall structure of the mine.
4. The layout of the drilling rig is flexible, and the mechanized twisting and unloading of the drill pipe reduces the labor intensity of the workers and improves the work efficiency.
5. The box-type feeding frame is adopted, the gripper is tightened, the power head is rotated for drilling, and the oil cylinder is used to pull the drilling tool, which can save the heavy drilling tower.
6. A manual variable motor is used to drive the spindle to rotate, with a wide range of stepless speed regulation, suitable for high-speed drilling of alloy steel and low-speed drilling of hard alloy.
7. It has linkage function, centralized control through the operation console, simple and safe, easy to operate, safe and reliable.
8. With the hollow shaft design, the length of the drill rod is not limited by the stroke given by the drilling rig. 360° arbitrary inclination drilling, also can be used for surface 0-90 degree drilling. Φ33-Φ43 drill pipes can be used in the same machine, and it only takes 15 minutes to replace them.
9. A shift of 2 people can operate skillfully within 2-5 days.
3. Specifications of KY-200 hydraulic exploration drilling rig for metal mine
Drilling diameter (mm)
Drill pipe diameter (mm)
Drilling depth (m)
Drilling angle (°)
Spindle speed (r/min)
Spindle output torque (N.m)
Rated pulling force (KN)
Rated pulling speed (m/s)
Oil supply method
Double gear pump
Oil pump model
Front pump 63
Rear pump 10
System pressure (Mpa)
Front pump 16
Rear pump 12
Hydraulic oil type
Anti-wear hydraulic oil
YB-N46 (summer)/YB-N32 (winter)
Hydraulic motor model
Manual variable motor L6V55
Motor power (KW)
Host weight (kg)
Operating table (kg)
Power car (kg)
Host size (mm)
Operating table size (mm)
Power car size (mm)
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.Key words:
