DYTG Type Electric Hydraulic Pipe Passing Machine
- Commodity name: DYTG Type Electric Hydraulic Pipe Passing Machine
1. Brief introduction of DYTG electric hydraulic pipe passing machine
DYTG type electric hydraulic pipe passing machine is a new type of three-phase electric and hydraulic pipe passing equipment designed by Shandong Master Machinery Group on the basis of pneumatic pipe passing machine. The dredging efficiency has been greatly improved, at the same time, it avoids the shortcomings of high noise and flying dust splashing by the pneumatic pipe passing machine.
The DYTG electric hydraulic pipe passing machine adopts a modular design and is assembled by the main engine, main engine drill frame, fixed pipe support, hydraulic pump station, switchboard and crane. The structure is simple, easy to install and operate, and it is now widely used in occasions such as dredging of blocked conveying pipes
2. Features of DYTG type electric hydraulic pipe passing machine
(1) The drilling rig adopts modular design, which is convenient for assembly and handling.
(2) The drilling rig adopts hydraulic propulsion and mechanical rotation drilling methods, and water drilling avoids flying dust.

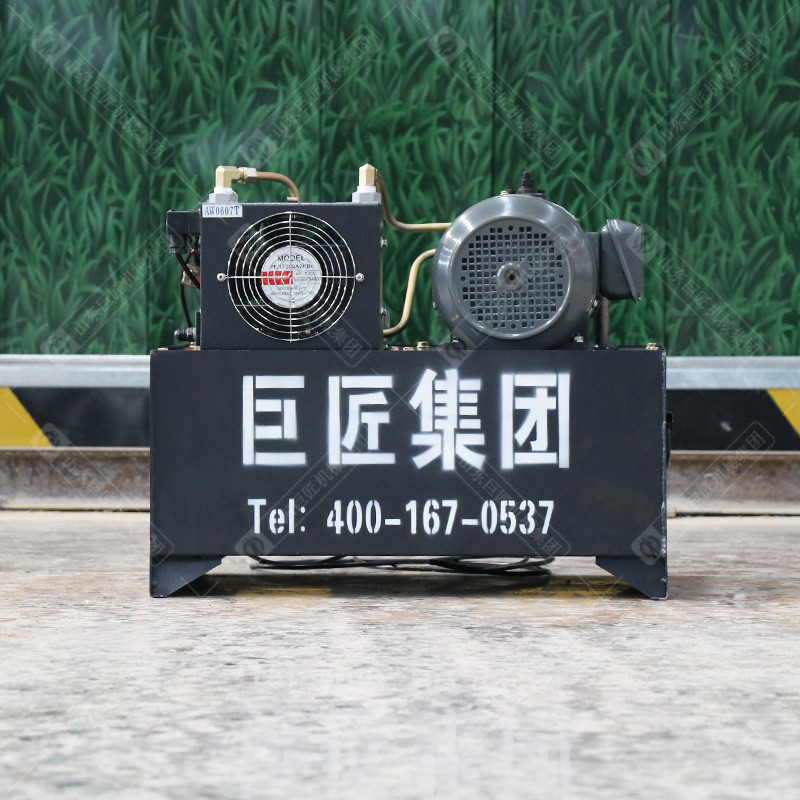

(3) The drilling rig is equipped with a hydraulic pump station, which is connected with the oil cylinder through the oil pipe, and the oil cylinder drives the main engine part to perform the pump pipe dredging operation, which improves the drilling efficiency.

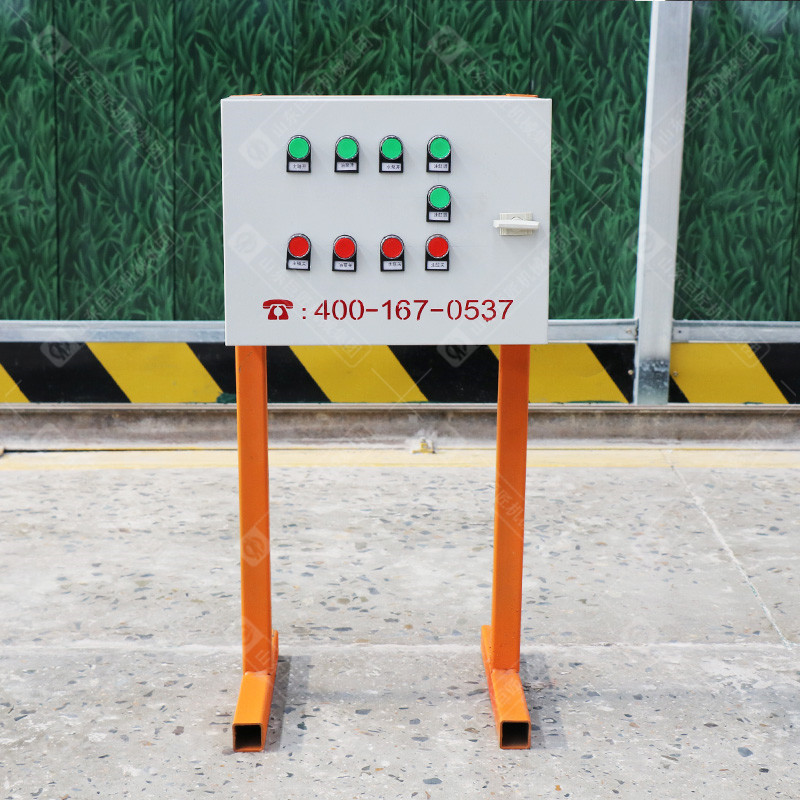

(4) Equipped with switchboard, centralized operation, safe and simple.
(5) Equipped with a hoist, it is convenient to hoist the pump tube during the dredging process, saving time and effort.
3. Parameters of DYTG type electric hydraulic pipe passing machine
The host power
Hydraulic pump station power
Hydraulic pump station pressure
Crane lifting weight
C20 C25 C30 C40 C50
Dredge pump pipe length
3 or 4
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.Key words:
