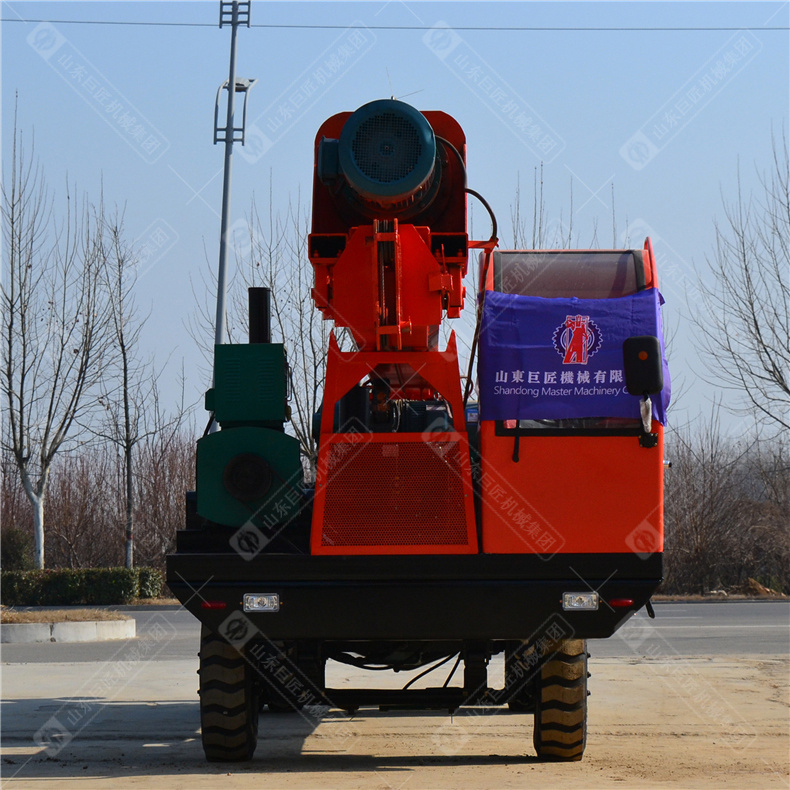

LXL Series Wheeled Long Spiral Pile Driver
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: LXL Series Wheeled Long Spiral Pile Driver
1. Brief introduction and application of LXL series wheeled long spiral pile driver
LXL series wheel-type long spiral pile driver is widely used in civil buildings, construction projects, highway piling, small bridge construction, wind power generation, solar photovoltaic power generation pillar piling and other projects.
LXL series 360 degree wheel long spiral pile driver adopts hydraulic foot type chassis with high automation and can walk and rotate 360 degrees by itself. It has four hydraulic legs and one walking cylinder to assist walking and rotation and increase the stability of the whole machine during construction. It can be transported by the whole machine. It may be drilled once, and it can also be used for dry drilling, grouting replacement and recovery after changing drilling tools. Deep mixing and other construction methods are used.
2. Product parameters of LXL series wheeled long spiral pile drivers
Specifications
Unit
LXL-6/360
LXL-8/360
LXL-10/360
Rotation angle
°
360
360
360
Maximum hole diameter
mm
300-800
300-800
300-800
Maximum depth
m
6
8
10
Vertical rod height
m
8.45
10.45
12.45
Horizontal rod length
mm
6950
8950
10950
Wheelbase
mm
2450
4200
4200
Tread
mm
1700
1840
1840
Generator Unit Power
kw
30
40
40
Vehicle weight
T
6.5
7.2
7.6
Winch power
t/kw
2/7.5
3/11
3/11
Oil pump motor power
kw
7.5
11
11
Climbing angle
°
25
25
25
Walking speed
km/h
30
40
40
Walking mode
Hydraulic steering and oil brake
Hydraulic steering and brake
Hydraulic steering and brake
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
