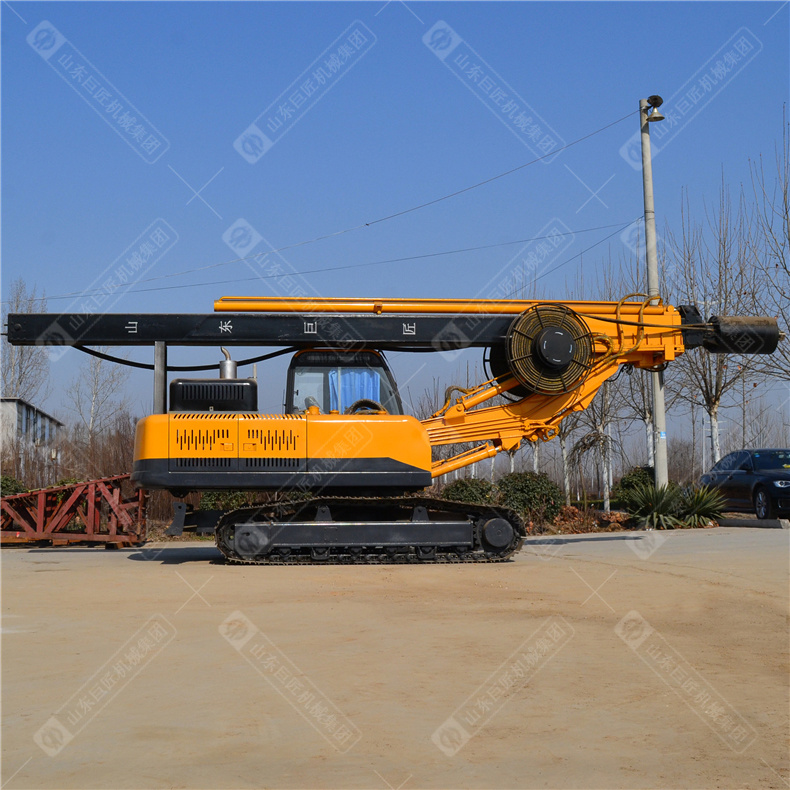

XWDF Series Crawler Rotary Pile Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XWDF Series Crawler Rotary Pile Drilling Rig
1. Application of XWDF series crawler rotary pile drilling rig with square power rod
XWDF series crawler rotary pile drilling rig with square power rod is suitable for soil layer, clay layer, fill layer, silt layer, silt layer and some strata containing pebbles, gravel and strong weathered rock. It is widely used in building construction,, high speed rail contact network support, slope protection pile, city construction, civil building, new rural construction, power grid transformation, garden greening and many other projects.
2. Characteristics of XWDF series crawler rotary pile drilling rig with square power rod
High efficiency and energy saving hydraulic system, large torque full hydraulic power head, 360 degrees of free rotation, wide application, high construction efficiency, stable performance, environmental protection and energy saving and other advantages, deep pile driving, fast speed convenient displacement. compared with large rotary drilling rig,This drilling rig has the characteristic of low cost of purchase, low cost of transportation, quick income. These characteristic shows its economy and engineering adaptability.
3. Parameters of XWDF series crawler rotary pile drilling rig with square power rod
Model
Unit
XWDF-15
XWDF-22
Work Mode
/
Cylinder pressurization
Cylinder pressurization
Drilling diameter
mm
500-1500
500-1500
Drilling depth
m
≤15
≤22
Dimensions
m
8.8×2.3×3.1
10×2.6×3.1
Working quality of the whole machine
(Drilling tools are not included in the standard configuration)
t
13.6
17.8
Power head torque
kn.m
≤23000
≤23000
Power head speed
r/min
20-40
20-40
Turntable rotation angle
full rotation
full rotation
walking speed
km/h
5-8
5-8
Climbability
°
≤25
≤25
Engine model
/
6105
6105
Engine power
kw
110
145
Track width
mm
450
600
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
