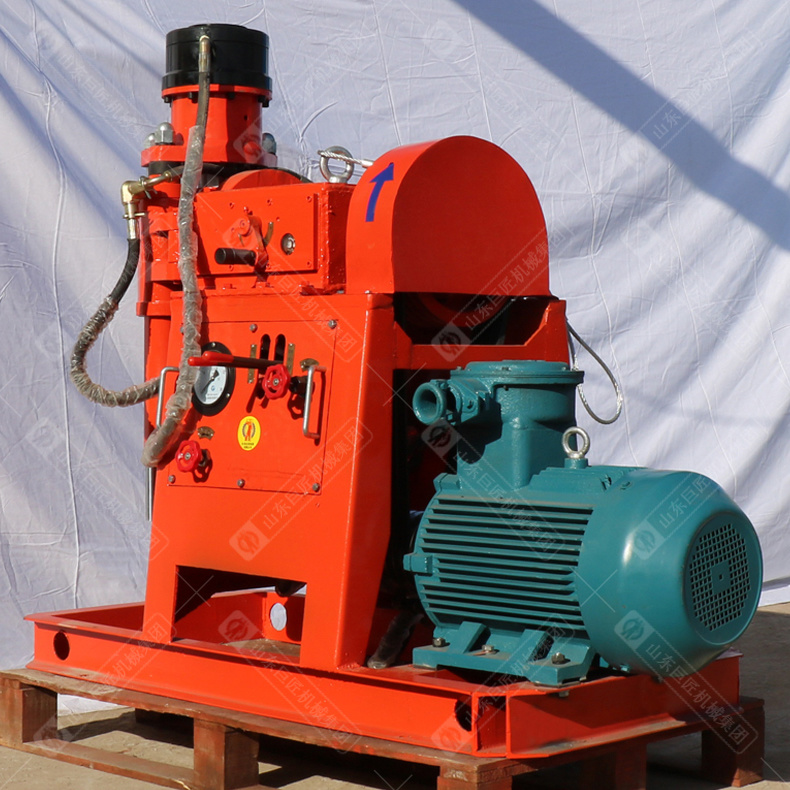

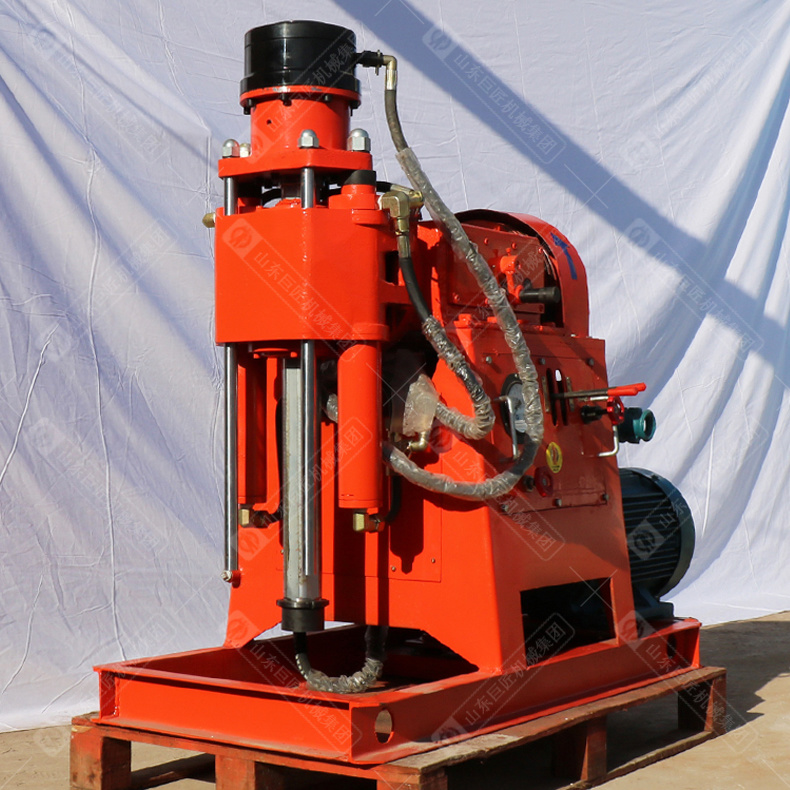

ZLJ-650 Grouting Reinforcement Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ZLJ-650 Grouting Reinforcement Drilling Rig
1. Brief introductions of ZLJ650 grouting reinforcement drilling rig
ZLJ-650 grouting reinforcement drilling rig is mainly used for drilling holes with different angles in underground mine, tunnel, subway and slope support.
This drilling rig adopts mechanical drive, hydraulic feed with small size, light weight, The drilling rig is reliable and convenient to operate.
2. Specifications of ZLJ650 grouting reinforcement drilling rig
Model
ZLJ650
Drilling hole diameter
50-113mm
Hole depth
200m
Drilling pipe diameter
42mm
Open hole diameter
50-113mm
End hole diameter
56-113mm
Vertical rated speed
340 192 112 r/min
Vertical shaft torque rating
130/ 230/ 400 n.m
Main shaft angle
0-360
Spindle stroke
400mm
System pressure rated
8mpa
Feeding force
9kn
Elevating power
12kn
Winch lifting capacity
7.35kn
Drum Capacity
26.8m
Wire rope diameter
8.85mm
Oil pump type
YBC-12/80
Motor power
7.5kw
Dimension
1200*700*1280mm
Total weight
560kg
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
