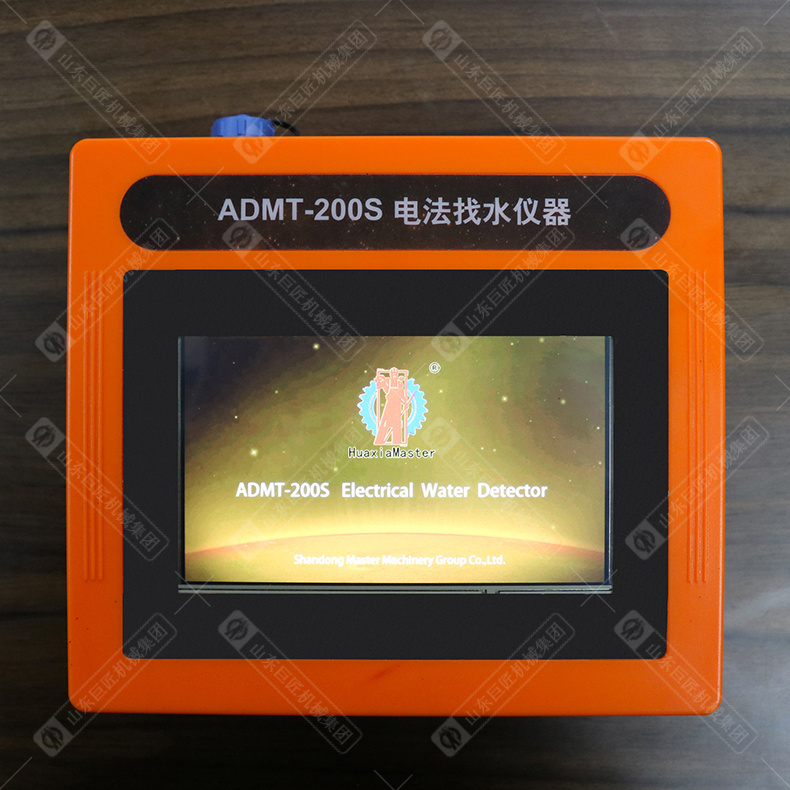

ADMT Series Intelligent Imaging Underground Water Detector
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ADMT Series Intelligent Imaging Underground Water Detector
1. Introduction of ADMT series intelligent imaging water detector
ADMT series intelligent imaging water detector is a special intelligent water-seeking instrument launched by Shandong Master Machinery Group Co.,Ltd. and Jining Master Machinery Institute. ADMT series intelligent imaging water detector belongs to MT method exploration category. It uses natural electromagnetic field as the source of field to measure the change of the underground resistivity of the natural electromagnetic field , the trend ,depth, water yield of ground water is judged with analyses. These relevant information is used to guide the operation of drilling wells and taking water, which greatly improves the success rate of well drilling. ADMT series intelligent imaging water detector is equipped with electrode measurement as standard. It can also be equipped with electromagnetic probe wireless measurement. It is very convenient and quick to operate in the field and widely recognized by customers.
2. Features of ADMT series intelligent imaging water detector
Portable: the MT method of electric exploration uses natural electromagnetic field as the field source, omitting the traditional bulky power supply part, the efficiency is increased by more than 10 times, and the depth is also increased by 3-5 times;
Simple operation: measurement method can be the standard electrode input,also can be the electromagnetic probe wireless measurement.Measurement method is more diverse. Using the magnetic probe to measure wirelessly, it can be measured by single person walking. It is very intelligent and simple. After measuring a section, you can set a well and it is very convenient and quick to operate in the field.
High precision,strong anti-interference ability, stable field source, good repeat consistency: high-performance amplifier and AD converter can not only accurately measure various low-frequency signals, but also reduce the interference of natural electromagnetic field source changes. It would furthest reduce the variation of the field source and the movement error, and repeat the measurement at the same position to obtain good consistency.Intelligent and efficient: all complex algorithms are automatically completed, 5 seconds to complete the data processing work.
3D imaging: Bluetooth can be used to realize the data connection between the mobile phone or tablet computer and the water detector, and the operation of the mobile phone or tablet computer can be realistic 2D, 3D into an image.
3. Parameters of ADMT series intelligent imaging water detector
Parameter
ADMT-100S
ADMT-200S
ADMT-300S
ADMT-400S
ADMT-600S
ADMT-800S
Measuring range
0-300mv
Detection depth
0-100m
0-200m
0-300m
0-400m
0-600m
0-800m
Frequency-selecting
20
40
60
80 frequency
Resolution
2µV
1µV
0.5µV
0.2µV
0.1µV
A/D switch
16bit 1Msps
24bit 1Msps
Input impedance
≥10MΩ
Power restrains
＞80dB
Data storage
phone storage space
Display mode
Phone or tablet computer display
Connection mode
Bluetooth 4.0
Power supply
DC7.4V 3400mAh lithium battery
DC7.4V 6800mAh lithium battery
Power consumption
160mA
230mA
230mA
360mA
360mA
360mA
Service temperature
-10℃~+40℃
-20℃~+60℃
-40℃~+70℃
Dimension
18.6*14.8*8cm
Weight
0.8kg
0.9kg
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
