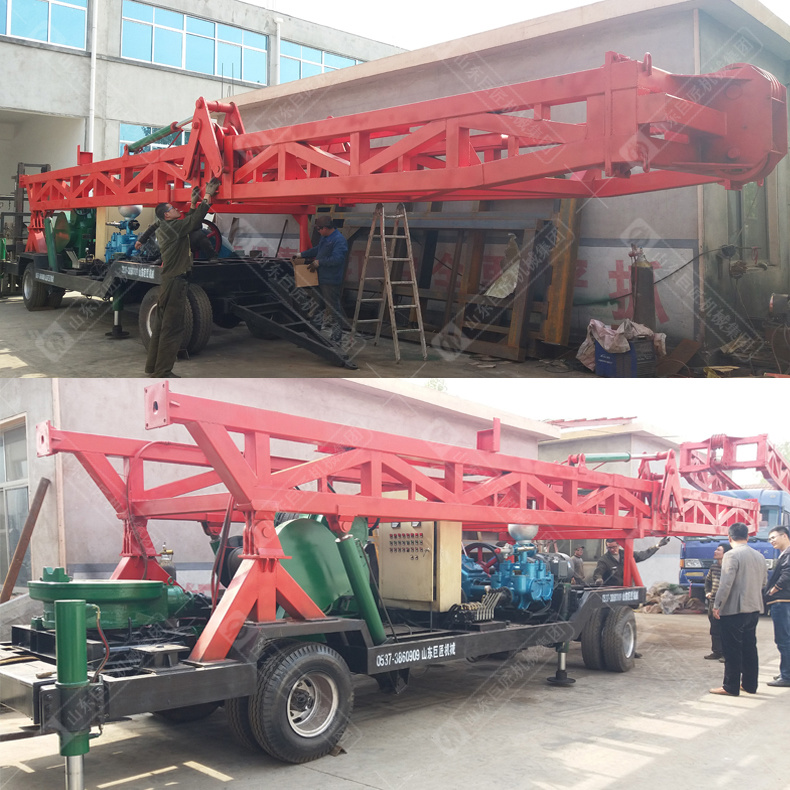

SPJ-1000 Turntable Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: SPJ-1000 Turntable Water Well Drilling Rig
1. The features of SPJ-1000 water well drilling rig
SPJ-1000 water well drilling rig is mainly used for drilling and exploration of hydrology and water wells within 1000 meters, which is suitable for soil, rock and gravel layers.
The SPJ-1000 water well drilling rig adopts mechanical transmission and rotary table driving drilling tool to achieve footage. It has the characteristics of large output torque, strong lifting ability and wide speed range. The drilling rig has windlass, derrick with truss type "A" type tower or four corner towers. The drilling rig is a bulk structure, with strong decomposition ability and easy transportation. It can also be processed into trailer or vehicle mounted.
2. The specifications of SPJ-1000 water well drilling rig
Model
SPJ-1000
Drilling depth
1000m
Borehole diameter
500mm
Rotary table diameter
1200mm
Rotary table latus rectum
670mm
Rotary table weight
2050kg
Rotary speed
36/60/90/130r/min
Active drilling pipe
133*133*12mm
Drilling pipe
89mm or114mm
Main windlass
single rope lifting force
60t
Assistant windlass
single rope rated lifting force
30t
Windlass power
45kw
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
