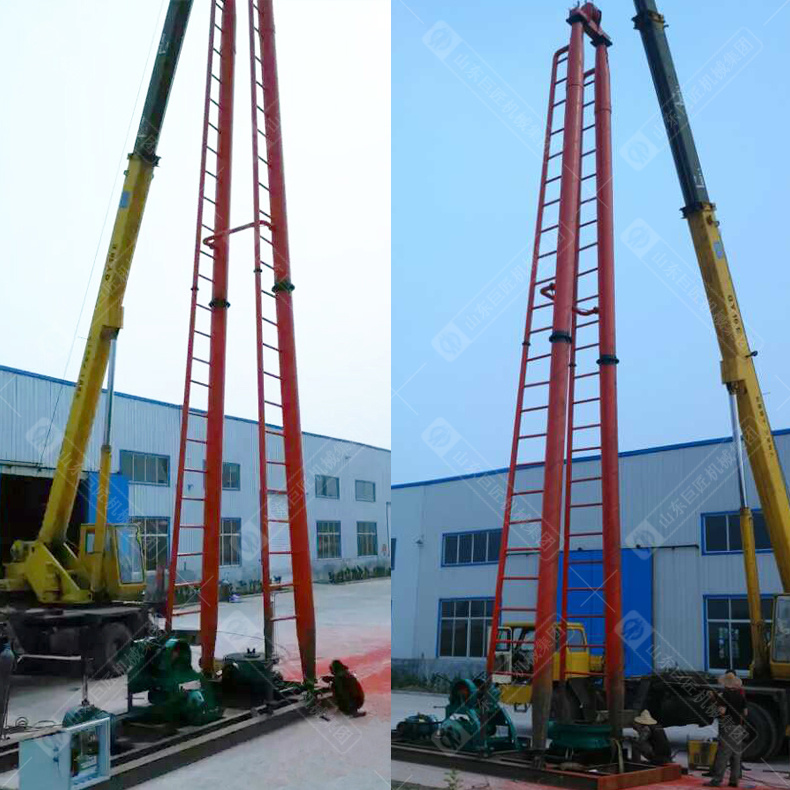

SPJ-600 Turntable Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: SPJ-600 Turntable Water Well Drilling Rig
1. The features of SPJ-600 water well drilling rig
SPJ-600 water well drilling rig is mainly used for drilling and exploration of hydrology and water wells within 600 meters, which is suitable for soil, rock and gravel layers.
The SPJ-600 water well drilling rigadopts mechanical transmission and rotary table driving drilling tool to achieve footage. It has the characteristics of large output torque, strong lifting ability and wide speed range. The rig has windlass, derrick with truss type "A" type tower or four corner towers. The drilling rig is a bulk structure, with strong decomposition ability and easy transportation. It can also be processed into trailer or vehicle mounted.
2. The specifications of SPJ-600 water well drilling rig
Model
SPJ-600
Drilling depth
600m
Borehole diameter
500mm-2500mm
Rotary table latus rectum
605mm
Active drillingpipe
108*108*12mm
Drilling pipe
89mm
Rotary speed
42/75/134kn.m
Main windlass
single rope lifting power
35kn
hook rated load
210kn
hook lifting speed
0.15-0.47m/s
pulley block model
3*3
wire-rope diameter
20-21.5mm
Assistant windlass
single rope rated lifting power
15kn
maximum lifting power of a single rope
20kn
single rope rated lifting speed
0.58m/s
wire-rope diameter
9.8mm
Windlass power
37kw
Gross weight (excluding drillingpipe)
11t
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
