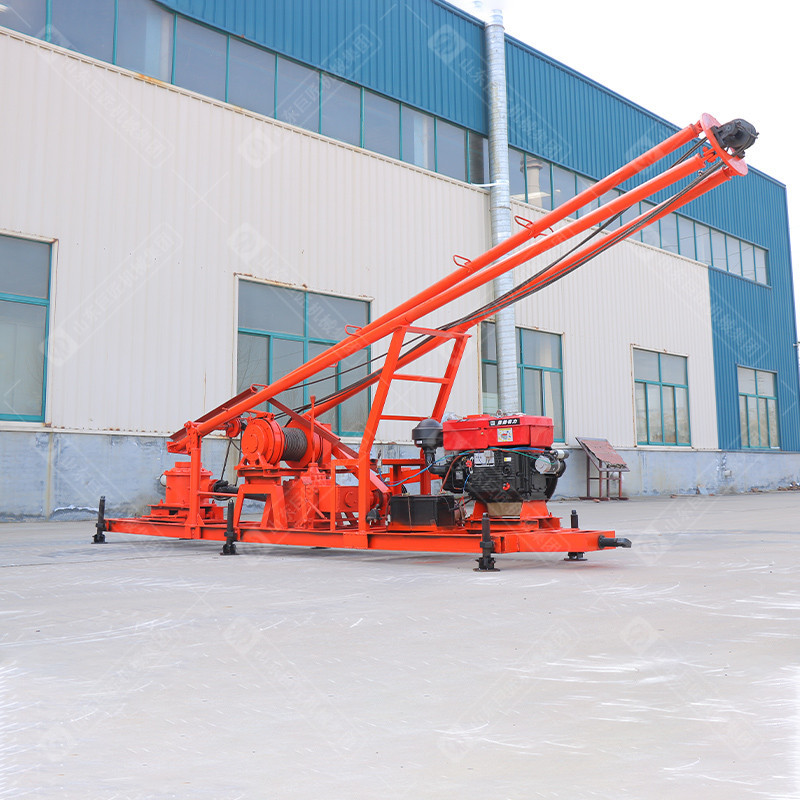

SPJ-130 Grinding Disc Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: SPJ-130 Grinding Disc Drilling Rig
1. Introduction of SPJ-130 grinding disc drilling dig
SPJ-130 drilling rig is a multi-functional large-diameter water well drilling rig equipment independently developed by our company. It adopts the latest hydraulic pressure and grinding disc, and has been widely used in dewatering wells, farmland irrigation wells and engineering pile holes.
2. Features of SPJ-130 grinding disc drilling rig
（1）The drilling rig is composed of a chassis, a drilling frame, a hoist, and a grinding disc.
（2）The gearbox is a 6-speed gearbox, suitable for various terrains, with fast drilling speed and high efficiency.
（3）The rig chassis can be equipped with wheeled traction chassis and crawler walking chassis, with strong mobility.
（4）The hoist and the grinding table use a power system, which operates smoothly, with abundant power and strong lifting ability.
3. Parameters of SPJ-130 grinding disc drilling rig
Model
SPJ-130
Drilling depth
≤130m
Hole diameter
120-800mm
Turntable speed
Forward 15 30 50 95 120r/min
Reverse 17r/min
Hoist lifting capacity
30kN
Derrick working height
4.6m
Supporting power
Motor
7.5-11kW
Diesel
22hp
Matching water pump
Flow rate
100-150 m³/h
Head
9m
Outlet diameter
100mm
Drill pipe diameter
73mm
Drill pipe length
2.5m
Weight
1200kg (Without power)
Size
3800*1100*1900mm
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
