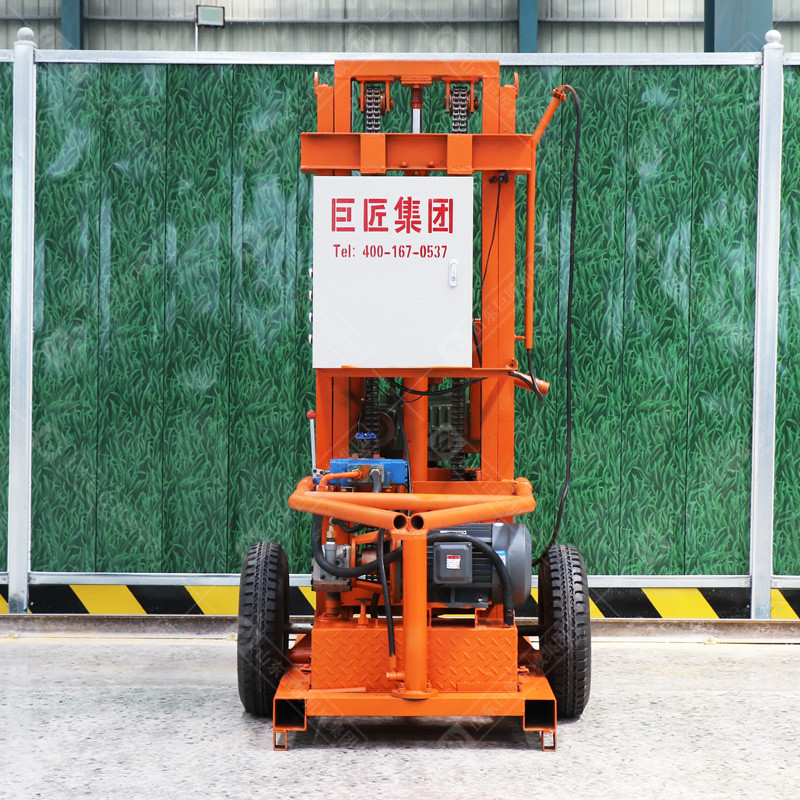

SJDY-3 Ground Source Heat Pump Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: SJDY-3 Ground Source Heat Pump Water Well Drilling Rig
1. Introduction of SJDY-3 ground source heat pump drilling rig
SJDY-3B ground source heat pump drilling rig is a hydraulic drilling rig that has been successfully improved and widely promoted by Shandong Master Machinery Group. This drilling rig is suitable for drilling in mud, quicksand and a small amount of rock and soil. It has been widely used for drilling ground source heat pump air-conditioning wells, engineering precipitation wells, drought-resistant wells, industrial wells and other occasions.
2. Features of SJDY-3 ground source heat pump drilling rig
（1） The rig gantry is durable and not easy to deform.
（2） The mast has a large lifting force, is safe and reliable, and has a large load.
（3） The gearbox is designed to rotate with a mandrel, with a unique and practical structure, higher torque and fast drilling speed.
（4） The launching faucet uses a power transmission universal joint, which greatly cushions the shock of the drill pipe to the host.
（5） The rig automatically moves up and down the pole, which greatly reduces the labor intensity of the workers.
（6） The wire teeth at both ends of the drill pipe are all heat-treated and should not be worn.
3. Parameters of SJDY-3 ground source heat pump drilling rig
Model
SJDY-3
Applicable voltage（V）
380
380
380
380
main motor power（kW）
5.5
7.5
11
15
Hydraulic motor power（kW）
5.5
5.5
7.5
7.5
Working torque（kN）
20
25
30
35
Drilling diameter（mm）
100~650
100~700
100~750
100~800
Drilling depth（m）
130~1
150~1
170~1
200~1
Loading size（mm）
1600*800*2000
Construction size（mm）
1600*1200*4000
Total Weight（kg）
700
850
1000
1300
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
