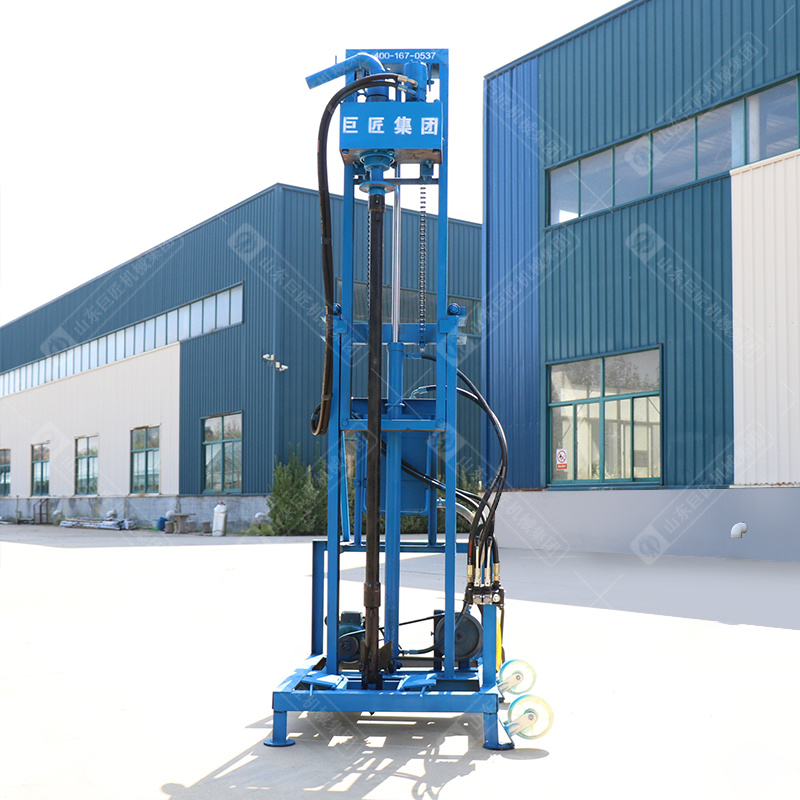

SJDY-2 Two-phase Electric Hydraulic Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: SJDY-2 Two-phase Electric Hydraulic Water Well Drilling Rig
1. Brief introduction of SJDY-2 two-phase electric hydraulic water well drilling rig
SJDY-2 two-phase electric hydraulic water well drilling rig is a hydraulic water well drilling rig developed and successfully widely promoted by Shandong Master Machinery Group. The drilling rig is suitable for drilling mud, quicksand and a small amount of rock and soil. It is mainly used for drilling civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought-resistant water wells, industrial water wells, etc.
2. Features of SJDY-2 two-phase electric hydraulic water well drilling rig
（1）The rated voltage of two-phase electricity is 220V, which makes it more convenient to use electricity.
（2）The drilling rig adopts hydraulic working principle to improve drilling efficiency.
（3）Equipped with high-power hydraulic motor, the power head can be forward and reverse.
（4）The drill frame is equipped with a hydraulic cylinder, and the hydraulic pressure can be raised and lowered by operating the handle.
（5）Equipped with wheel walking mechanism, it is convenient to move the drilling rig in a short distance.
3. Parameters of SJDY-2 two-phase electric hydraulic water well drilling rig
Model
SJDY-2
Drilling depth
m
50~100
Hole diameter
mm
200
Final hole diameter
mm
100-200
Drill pipe specifications
mm
Φ50*1500
Rated voltage
V
220
Rated power
KW
4
Transport size
mm
L1050*W1030*H1700
Construction size
mm
L1050*W1030*H2720
Total Weight
kg
250
Number of operators
people
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
