HJD Type Horizontal Mountain Spring Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: HJD Type Horizontal Mountain Spring Drilling Rig
1. Introduction of HJD type horizontal mountain spring drilling rig

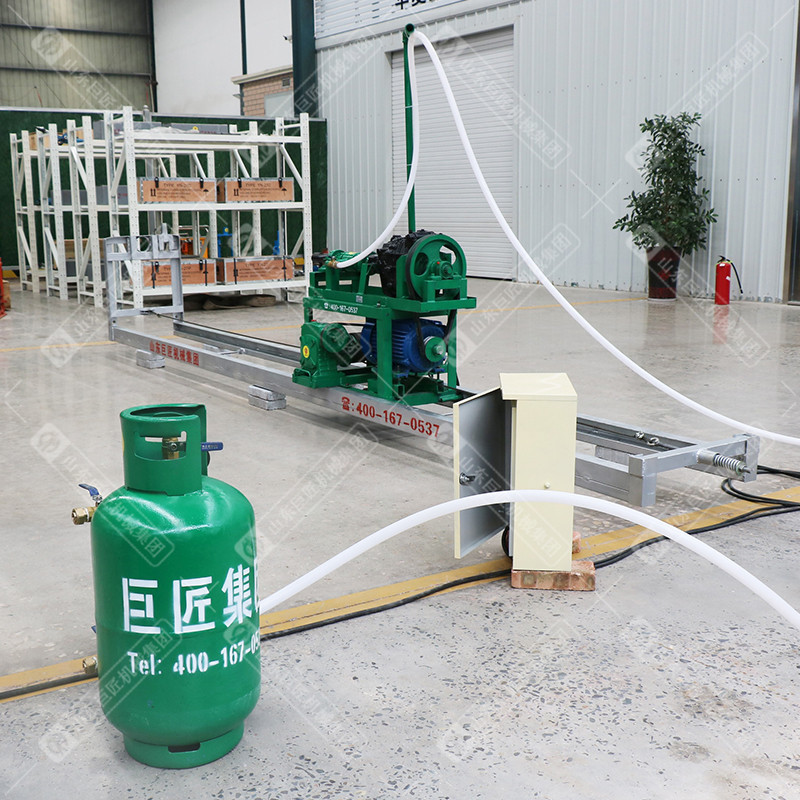

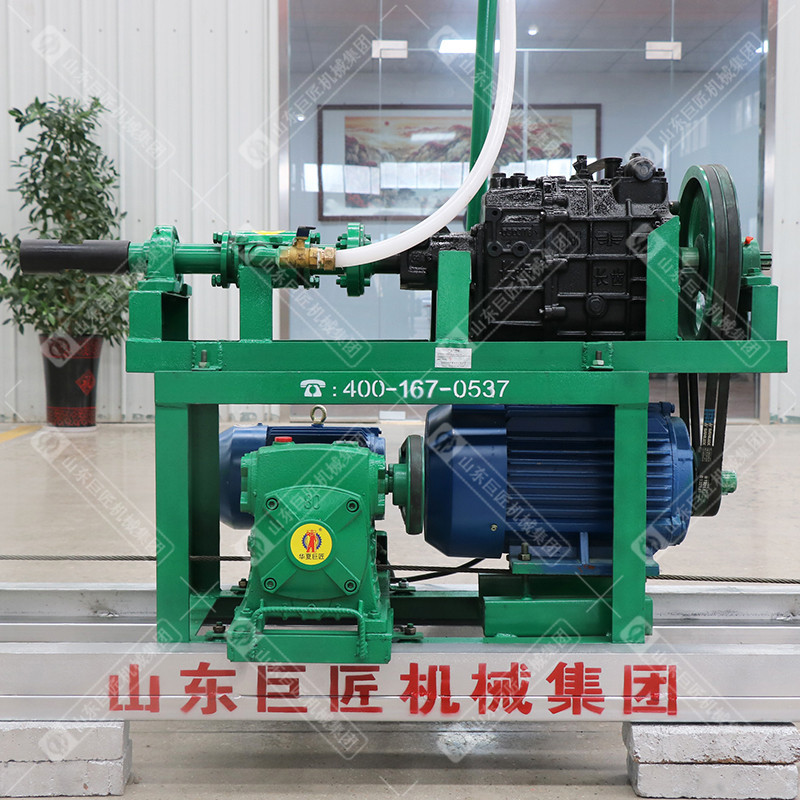

There is a certain area of stagnant water in the mountainous areas of my country's mountainous areas, especially in the southern provinces. To meet the water demand of the people in the mountainous areas, Shandong Master Machinery Group and Jining Master Machinery Research Institute jointly developed a mountain horizontal drilling rig. The horizontal drilling rig adopts a modular design and is composed of a main engine, a slideway, a switchboard, a water cylinder, etc., with a reasonable layout and a compact structure. In order to further facilitate the movement and handling, the main engine can be disassembled into the revolving part, the propulsion part, and the main engine base, and the slideway can be disassembled into the guide rail, the wire rope tensioner, and the drill support frame. The main machine of the drilling rig adopts the working principle of water-air combination of pneumatic drilling and wet slag discharge. It can be used in conjunction with a long-stroke slide to realize horizontal drilling of mountain. The drilling rig is now widely used in operations such as lateral drilling and mountain lateral drilling.
2. Features of HJD type horizontal mountain spring drilling rig
（1）The drilling rig adopts the working principle of water-air combination, with high efficiency, fast footage and less dust.
（2）The drilling rig adopts modular design, which can be easily disassembled and assembled, which is convenient for transportation and handling uphill.
（3）Configure long-stroke slides and choose long drill rods to reduce the number of drill rod changes.
（4） In addition to the forward rotation of the main engine, it is set to move forward and reverse to facilitate the loading and unloading of the drill pipe.
（5） The drill rig switchboard is equipped with a wireless remote control, which can realize the remote operation of the host.
3. Parameters of HJD type horizontal mountain spring drilling rig
No.
Item
Unit
Parameters
1
Drilling diameter
mm
65、70、76、80
2
Drill rod specifications
mm
≥φ42*4000
3
Voltage
V
380
4
Power
kW
rotary motor
4
Propulsion motor
2.2
5
Weight
kg
Rotating part
90
Promotion Department
69
Mainframe base
80
Rail
38/piece
Drilling tool support
19
Water cylinder
20
Distribution box
10
6
Assembly size of the whole machine
mm
5660*840*970
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
