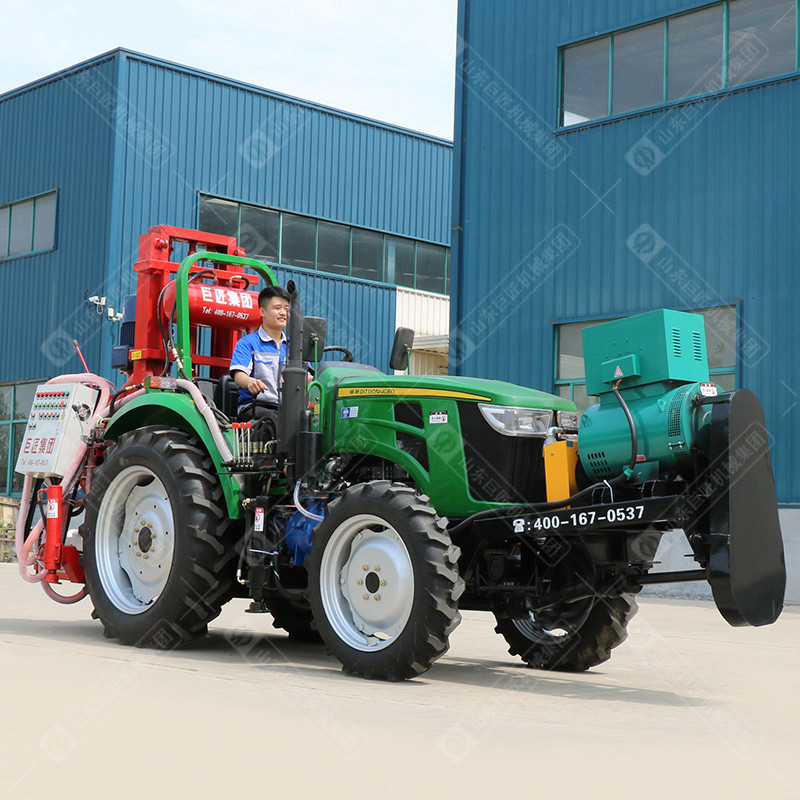

JFC-5 Tractor Reverse Circulation Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: JFC-5 Tractor Reverse Circulation Water Well Drilling Rig
1. Introduction of tractor reverse circulation water well drilling rig
JFC-5 tractor reverse circulation water well drilling rig is a tractor-type water well drilling machine integrating positive circulation and reverse circulation drilling functions. Positive circulation is mainly used for drilling sand layer, and reverse circulation is mainly used for drilling clay layer or pebble layer. The drilling rig can easily cope with the drilling work of soil layer, sand layer, clay layer and pebble layer. It has been widely used in watering wells, irrigation wells and pile holes and other projects.
2. Features of JFC-5 tractor reverse circulation water well drilling rig
(1) The tractor as the carrier, stable performance, easy to move field.
(2) The tractor chassis is started by electricity, which reduces the labor intensity of the operator and is convenient to start in cold season.
(3) Equipped with hydraulic legs, used for drilling machine leveling, ensure the stability of the fuselage.
(4) Front-facing generator of water well drilling machine, convenient switching between diesel and electric.
(5) The operation handle and distribution box layout is compact and reasonable, easy to operate.
(6) Set positive circulation and reverse circulation drilling function in one, can meet the drilling needs of different geology.
(7) Equipped with 5-speed transmission, it can meet the differentiated requirements of different strata on speed.3. Technical parameters of JFC-5 tractor reverse circulation water well drilling rig
Model
JFC-5
Drilling hole diameter
mm
300-1000
Positive circulation
drilling depthm
22-130
Positive and negative circulation combination drilling borehole depth
m
0-60 (Positive/reverse cycle drilling both can be done）
60-130 (Positive cycle drilling)
Drill pipe specification
mm
φ140*2000
Drilling speed
r/min
20-126 (Five-speed shift)
Large pump motor
kW
15
Drive motor
kW
11
Vacuum pump
kW
4
Hydraulic oil pump
kW
4
Tractor chassis
HP
≥80
Drilling rig weight
T
4.7
Transport size
mm
5800*2100*2700
Note: The product is constantly improving, if there is any change without prior notice, please refer to the actual subject.
