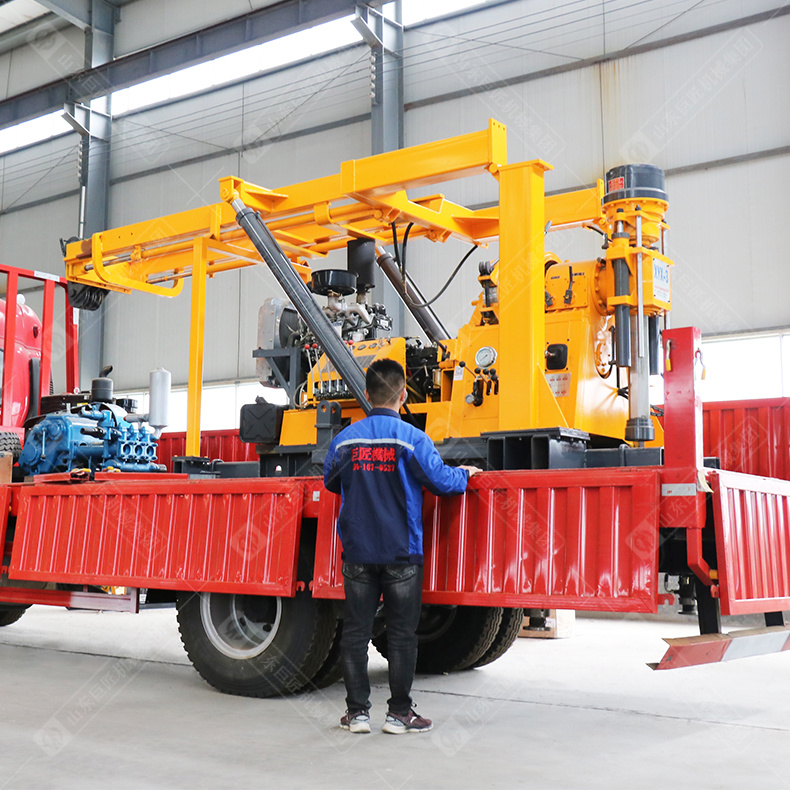

XYC-3 Vehicle-mounted Hydraulic Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XYC-3 Vehicle-mounted Hydraulic Water Well Drilling Rig
1. Main features of XYC-3 vehicle-mounted hydraulic water well drilling rig
XYC-3 is a multi-functional hydraulic vehicle-mounted water well drilling rig.The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis. The layout is reasonable and compact. And the operation is simple.
The drilling rig is equipped with high pressure and large flowBW-250 pump, which ensures the drilling depth and borehole diameter.
2. Applications of XYC-3 vehicle-mounted hydraulic water well drilling rig
geological survey and exploration
road and high-rise building foundation exploration
all kinds of concrete structure inspection holes
river embankments
subgrade grouting holes
drilling and direct grouting
civil use water wells
ground temperature central air conditioners
3. Parameters of XYC-3 vehicle-mounted hydraulic water well drilling rig
Model
XYC-3
Drill depth
30-600
Drill hole diameter
300-75
Diameter of the end hole
75
Drill angle
90-75
Spindle forward core speed
30-1050
Spindle reverse core speed
29-137
Spindle stroke
600
Main winch lifting force
(with single line)3000
Main winch rope capacity
65
Lifting speed
0.3-1.9
Rope diameter
12.5
Drill mast height
7000
Drill effective height
6500
Driving drilling rod
59*53、70*63、79*89
Drilling rod diameter
42/50/60
Weight
3500
Engine
Model:Yunnei YN27
BW-250 mud pump
Rated flow (l/min)
250
Rated power(mpa)
7
Driving power(kw)
15
Host weight(kg)
500
Dimension(mm)
1110*994*665
Chassis
(For reference only)
Model
180 HP 4X2 truck
Driving form
4*2
Engine
Model
BF4M2012-16E4
Emission standard
GB17691-2005
Rated power (kw)
121
core speed (r/min)
2200
External dimension (mm)
8998*2496*2900
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
