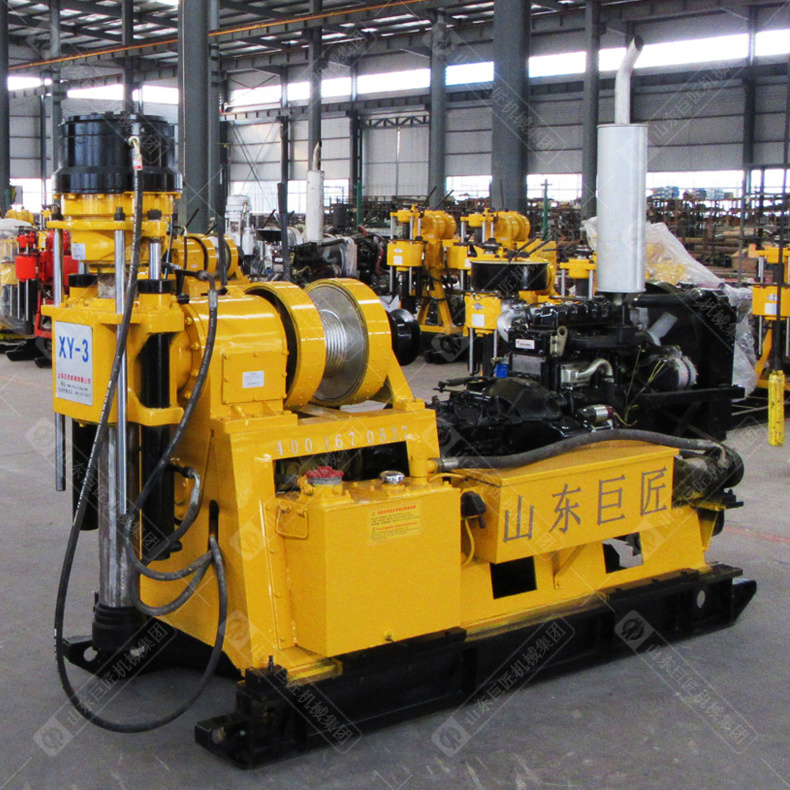

XY-3 Hydraulic Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XY-3 Hydraulic Water Well Drilling Rig
1. Features of XY-3 hydraulic water well drilling rig
XY-3 hydraulic water well drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
Large torque, strong bearing capacity, can realize long distance control speed change, operation centralized and convenient.
Large engine power and two reverse rotation gears, can easily solve the water well drilling rig work accident.
Equipped with normally closed hydraulic chuck, operation is flexible and reliable.
The independent operation of the vertical shaft and the hoist can be realized.
The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod.2. Parameters of XY-3 hydraulic water well drilling rig
Model
XY-3
Water well drilling depth
600m
Borehole diameter
300-75mm
Max open hole caliber
300mm
End hole caliber
75mm
Drilling rod diameter
60
Drilling angle
90°-65°
Spindle
spindle speed
30-1050r/min
Spindle stroke
29-137r/min
Spindle stroke
60mm
Spindle inner diameter
96mm
Lifting capacity
6000kg
Hoist
Max.single line lifting speed
0.5-1.9m/s
Wirerope caliber
12.5mm
Max.single line lifting capacity
4000kg
Reel diameter
300mm
Wirerope length
50m
Maximum lifting capacity of single rope
3000kg
Mud pump
Type
Horizontal three cylinder BW-250
Displacement
250l/min
Work pressure
80kg/cm²
Water inlet pipe diameter
75mm
Water outlet pipe diameter
50mm
Gear oil pump
Duplex gear oil pump
CBF-F63/25
Front displacement, pressure
63l/min 20mpa
Water outlet pipe diameter
25l/min 20mpa
Power
Diesel engine
39kw
Electric machinery
22kw
Weight size
Drill weight
1800kg
Shape size
2500*900*1800mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
