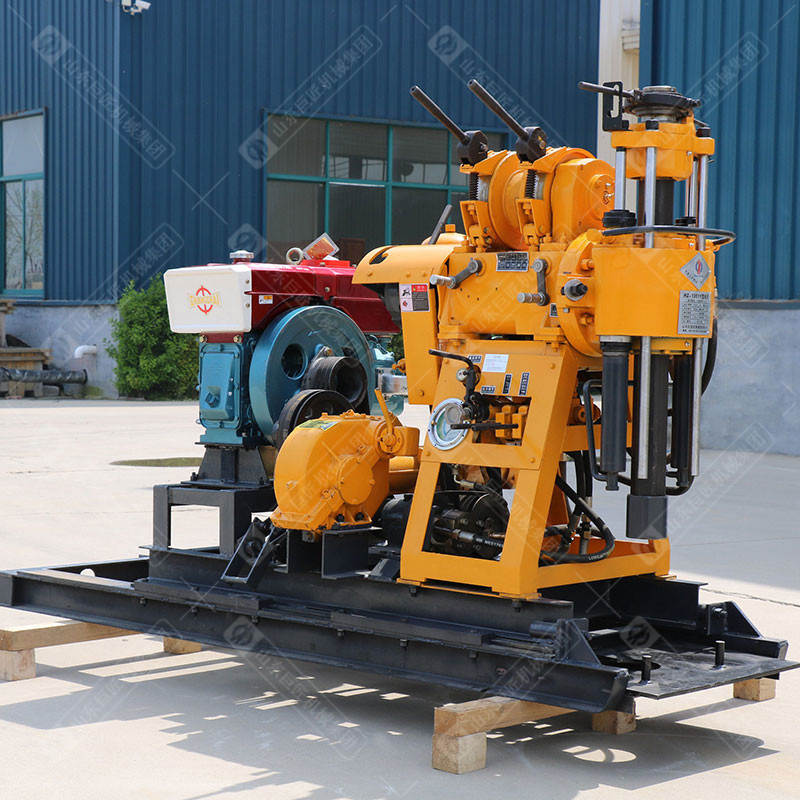

HZ-130YY Hydraulic Water Well Drilling Rig
- Commodity name: HZ-130YY Hydraulic Water Well Drilling Rig
1. Brief introductions of HZ-130YY hydraulic water well drilling rig
HZ-130YY hydraulic water well drilling rig adds shifting slipway on the basis of common drilling rig, which can realize rapid replacement of drilling tools and improve work efficiency and reduce labor usage.
2. Applications of HZ-130YY hydraulic water well drilling rig
This water well drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.
Drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite.
2-9 grades of sandy clay and rock.
3. Features of HZ-130YY hydraulic water well drilling rig
（1）The automatic feed mechanism with oil pressure can improve the drilling efficiency and reduce the labor intensity of the workers.
（2）The ball card holding mechanism is used instead of the chuck, which can be operated without stopping the rod, and the operation is convenient, safe and reliable.
（3）Hoist is installed with holder, forming structure of double support wheel so that it can withstand strong impact.
（4）Four groups of bearings are located in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complicated geological conditions such as the gravel layer, the pebble layer and so on.
（5）This drilling rig adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance.
4. Technical parameters of HZ-130YY hydraulic water well drilling rig
Drill hole depth
Maximum opening diameter
Final hole diameter
Take the initiative to drill pipe
Drill pipe diameter
Vertical spindle speed
Single rope lift
Single rope winding speed
Diameter of wire rope
Wire rope capacity
Suction pipe diameter
Diameter of high pressure pipe
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.Key words:
