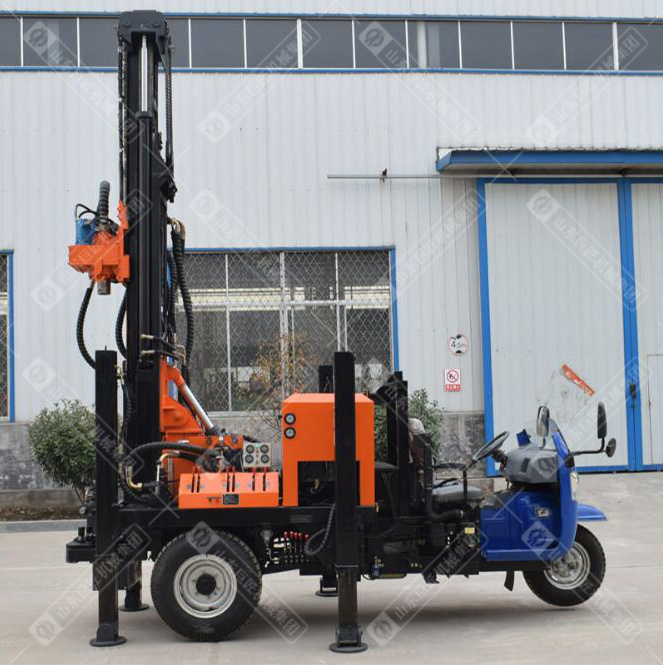

CJC-200 Truck-mounted Pneumatic Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: CJC-200 Truck-mounted Pneumatic Water Well Drilling Rig
1. Brief introduction of CJC-200 Truck-mounted pneumatic water well drilling rig
CJC-200 Truck-mounted pneumatic water well drilling rig is a pneumatic water well drilling rig jointly developed by Shandong Master Machinery Group and Jining Master Machinery Research Institute. It is mainly used for drilling operations in hilly, mountainous and other rocky areas. The advantages of hole depth, fast footage, flexible movement, and high efficiency have been widely used in industrial and civilian drilling, ground temperature drilling, environmental monitoring drilling and other occasions.
2. Features of CJC-200 Tru ck-mounted pneumatic water well drilling rig
(1) Using the principle of pneumatic impact, the drilling footage is fast and efficient.
(2) The automobile chassis adopts an agricultural three-wheeled vehicle with a reasonable and compact layout and easy operation.
(3) Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable.
(4) The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
(5) Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
(6) The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
(7) Equipped with quick rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
(8) Centralized operating handles, reasonable layout, safe and feasible.
(9) Excellent workmanship, durable, and low maintenance costs.
3. Technical parameters of CJC-200 Truck-mounted pneumatic water well drilling rig
No.
Parameter
Units
Value
1
Drilling diameter
mm
140-203
2
Drilling depth
m
200
3
Drill rod diameter
mm
φ76、φ89
4
Drill rod length
mm
1.5、2.0、3.0
5
One time advance length
mm
3300
6
Propulsion
t
7
7
Lifting force
t
15
8
Working pressure
mpa
1.7-3.0
9
Air consumption
m³/min
17-30
10
Engine power
kw
65
11
Walking speed
km/h
2.5
12
Gradeability
max.
30°
13
Rotation speed
rpm
45-65
14
Rotation torque
n.m
3300-4700
15
Dimensions
mm
3900*1700*2300
16
Overall weight
t
5
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
