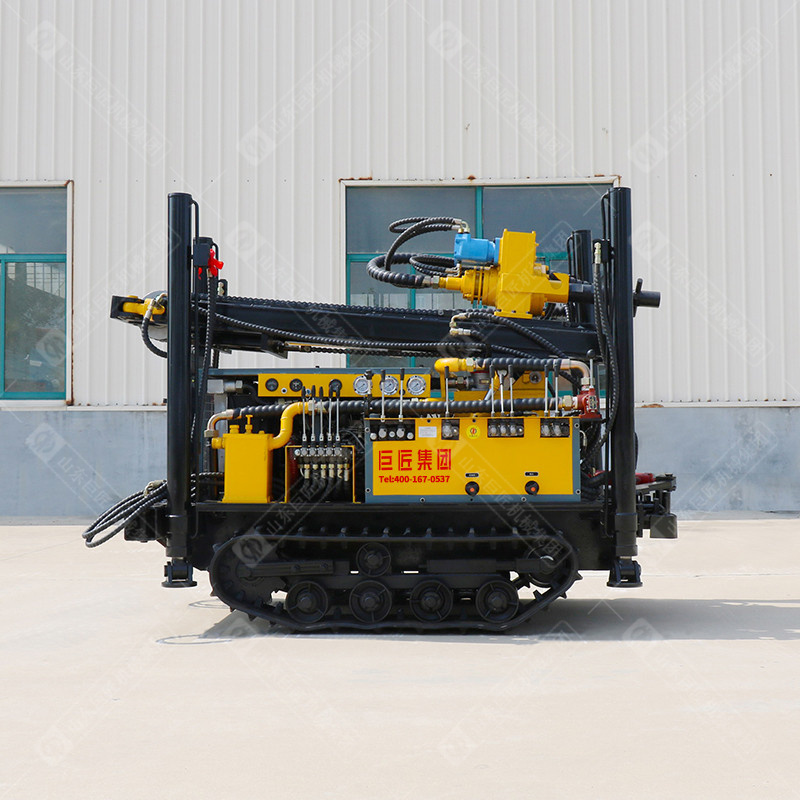

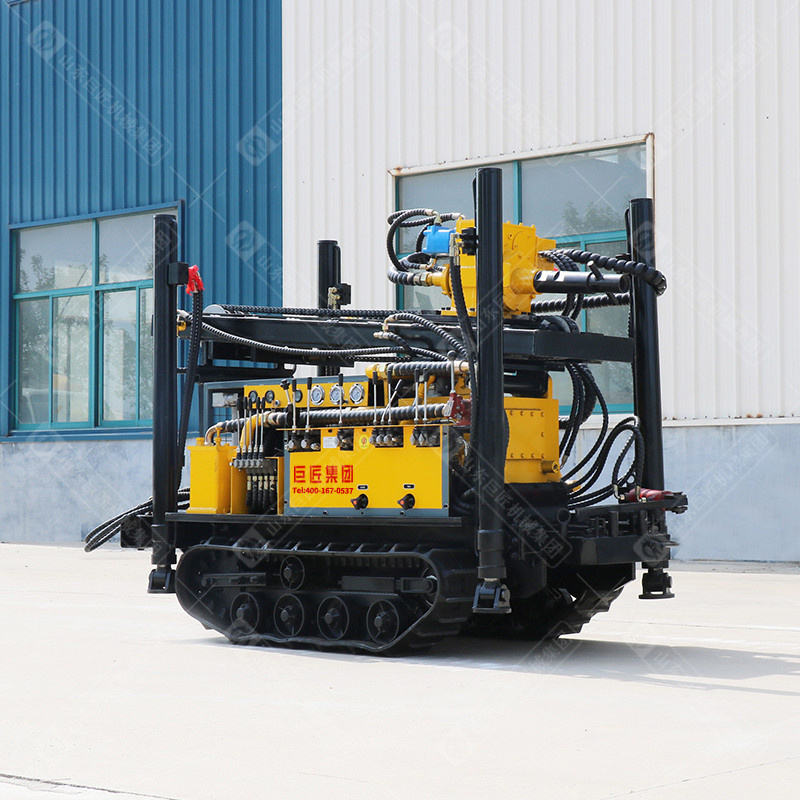

CJDX-160 Crawler Pneumatic Water Well Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: CJDX-160 Crawler Pneumatic Water Well Drilling Rig
1. Introduction of CJDX-160 crawler pneumatic water well drilling rig
CJDX-160 rubber crawler chassis pneumatic water well drilling rig is a small pneumatic drilling rig jointly developed by Shandong Master Machinery Group and Jining Master Machinery Research Institute. It is now widely used in industrial and civilian drilling and other occasions. The drilling rig has the advantages of small volume, light weight, flexible movement, high efficiency, easy to enter the house into the yard, recognized by the majority of drilling friends.
2. Characteristics of CJDX-160 crawler pneumatic water well drilling rig
(1) Small in size and light in weight, it is easy to enter the house and enter the courtyard for well drilling construction.
(2) Turn the key to the start position and press the start button to start with one key.
(3) It is equipped with Yuchai engine, which has strong power and can meet the needs of work.
(4) Equipped with rubber wire crawler, it is easy to move and does not hurt the road when walking on urban roads.
(5) Equipped with hydraulic high outriggers, it is convenient for loading and unloading trucks, saving hoisting costs, and can be used for drilling rig leveling to maintain the stability of the fuselage.
(6) The operating handle is centralized, the layout is reasonable, and it is safe and feasible.
(7) Equipped with hydraulic lifting and lowering compound drill boom, the work is efficient, safe and feasible.
(8) The drilling rig is equipped with hydraulic feeding system, dual hydraulic motor power head, chain drive and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
(9) Equipped with hydraulic wrench, the drill pipe can be quickly disassembled, saving time and effort.
3. Technical parameters of CJDX-160 crawler pneumatic water well drilling rig
No.
Parameter
Unit
Parameter value
1
Drilling diameter
mm
Φ130-Φ203
2
Drilling depth
m
160
3
Drill pipe diameter
mm
Φ76
4
Drill pipe length
m
2
5
One-time push length
mm
2400
6
Host power
kW
63
7
Propulsion
T
7
8
Lifting force
T
15
9
Working pressure
Mpa
1.2-3.0
10
Air consumption
m³/min
10-25
11
Walking speed
km/h
2.5
12
Climbing ability
Max.
30°
13
Rotary speed
rpm
65-100
14
Rotary torque
N.m
4500
15
Dimensions
mm
2540*1200*1880
16
Total Weight
T
2.8
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
