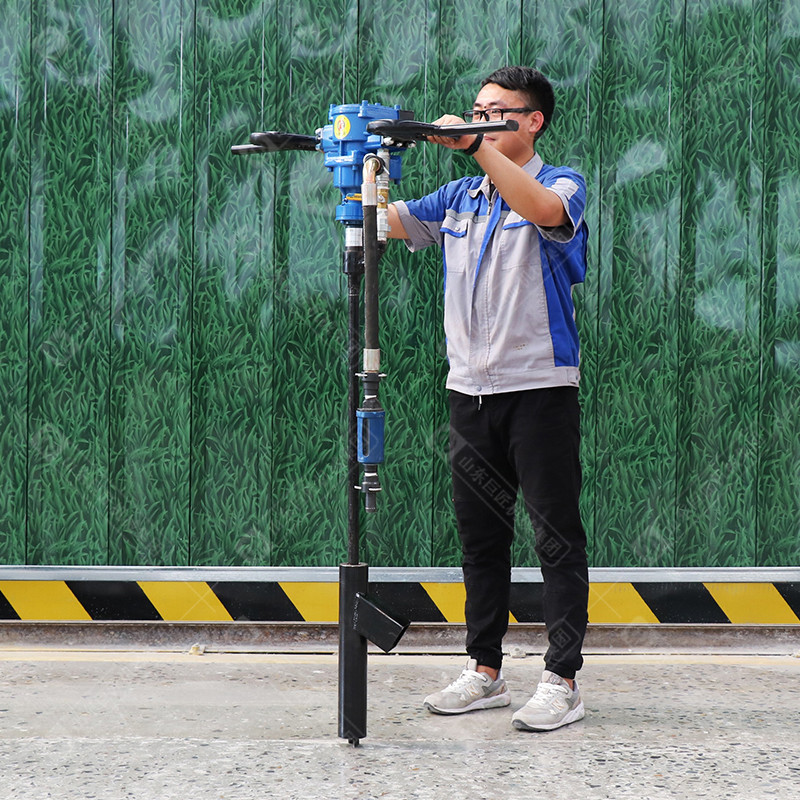

HTYZ Pneumatic Loess Highland Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: HTYZ Pneumatic Loess Highland Drilling Rig
1. Applicable scope of HTYZ pneumatic loess plateau drilling rig
The exploration of the loess plateau faces many difficulties. The drilling problem bears the brunt. The terrain of the loess plateau is complex, and large-scale drilling rigs are difficult to use. For nearly half a century, they can only rely on Luoyang shovel to operate, which is time-consuming and labor-intensive, and the operation efficiency is low. Relying on Jining Master Machinery Research Institute, Shandong Master Machinery Group continued to increase its technological innovation and successfully developed a HTYZ mechanized all-pneumatic portable drilling rig suitable for loess plateau exploration, ending the history of inefficient exploration and drilling in the loess plateau and cracking the loess plateau drilling in one fell swoop The problem has become a new weapon for petroleum seismic exploration in the loess plateau, and it is widely used in soil-free drilling operations.
The HTYZ pneumatic loess plateau drilling rig uses an air compressor as a power source. The air compressor delivers high-pressure air to the drilling rig through a high-pressure air pipe to provide power for the rotation of the drilling rig. During the drilling process, high-pressure air blows the soil agitated by the drilling rig to the surface through a dumper to achieve footage, thereby realizing exploration drilling. The drilling rig is small and light, does not need water during operation, and is easy to carry and install. It has been widely used in the loess plateau petroleum seismic exploration drilling, civil soil dry drilling and other occasions.
2. Features of HTYZ pneumatic loess plateau drilling rig
The drilling rig is small and light, and the required space for drilling is small, which is easy to carry and install.
Ergonomic design, one person can easily control the rig.
Pneumatic drilling, no water is needed during drilling, convenient and efficient work.
The drilling rig is equipped with a reversal function and it is convenient to unload the rod.
Equipped with a dumper to reduce dust splashing.
3. Performance parameters of HTYZ pneumatic loess plateau drilling rig
NO.
Basic performance
Unit
Parameter
1
Working pressure
mpa
0.40
0.50
0.63
2
Rated torque
n·m
115
140
150
3
Rated speed
r/min
260
280
300
4
Rated power
kw
3.1
4.1
4.7
5
Load torque
n·m
150
185
240
6
Power stall torque
n·m
170
220
270
7
Air consumption
m³/min
4.9
6.3
7.3
8
No-load speed
r/min
660
690
710
9
1/2 No-load speed
r/min
330
345
355
10
1/2Torque at no-load speed
n·m
95
115
125
11
Noise
Sound power level
DB(A)
120
Sound pressure level
DB(A)
110
12
Host weight
kg
20
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
