QTZ-4Y Hydraulic Portable Soil Sample Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QTZ-4Y Hydraulic Portable Soil Sample Drilling Rig
1. Brief introduction of QTZ-4Y hydraulic portable soil drilling rig
The QTZ-4Y hydraulic portable soil borrowing rig is a type of hydraulic soil sampling rig that Shandong Master Machinery Group has verified through field use in dozens of countries and regions for several years. The drilling rig adopts a modular design and is mainly composed of a hydraulic soil sample machine, a hydraulic pump station, and a hydraulic puller. The structure is simple and easy to assemble, transport and disassemble. QTZ-4Y portable soil drilling rig adopts hydraulic working principle, strong impact ability, fast footage, and has been widely used in environmental protection inspection, geological research, wetland environmental investigation, soil structure description, agricultural soil investigation, etc. I believe this set of equipment will be of great benefit to your work.
2. Features of QTZ-4Y hydraulic portable soil drilling rig
（1）The drilling rig adopts hydraulic working principle with strong impact ability and fast footage.
（2）Adopt Briton brand power, abundant power and durable.
（3）The hydraulic pump station adopts electric start, which reduces the labor intensity of the operator and is convenient to start in the cold season.
（4）Equipped with hydraulic lifting device, no need to manually lift the drill, saving time and effort.
（5）Diversified sampling methods can meet different requirements for samples.
（6）The sampling depth can reach about 20 meters, which can meet the requirements of actual sampling depth.
（7）The undisturbed soil sample that taken out can maintain the integrity.
（8）The drilling rig is simple in structure, small in size, light in weight, and easy to assemble, transport and disassemble.
3. Technical parameters of QTZ-4Y hydraulic portable soil drilling rig
No.
Item
Unit
Parameters
1
Power
Power
kW
10
Brand
Belitone (USA)
Horse power
hp
13.5
Start mode
Electric start
2
Flow rate of hydraulic pump station
L/min
25-35
3
Hydraulic oil tank capacity
L
25
4
Connection form
Hydraulic tubing connection
5
Pressure
MPa
10-14
6
Cooling method
Air cooling
7
Impact energy
J
150~280
8
Weight of hydraulic pump station
kg
120
Weight of borrower
40
Weight of borrower
40

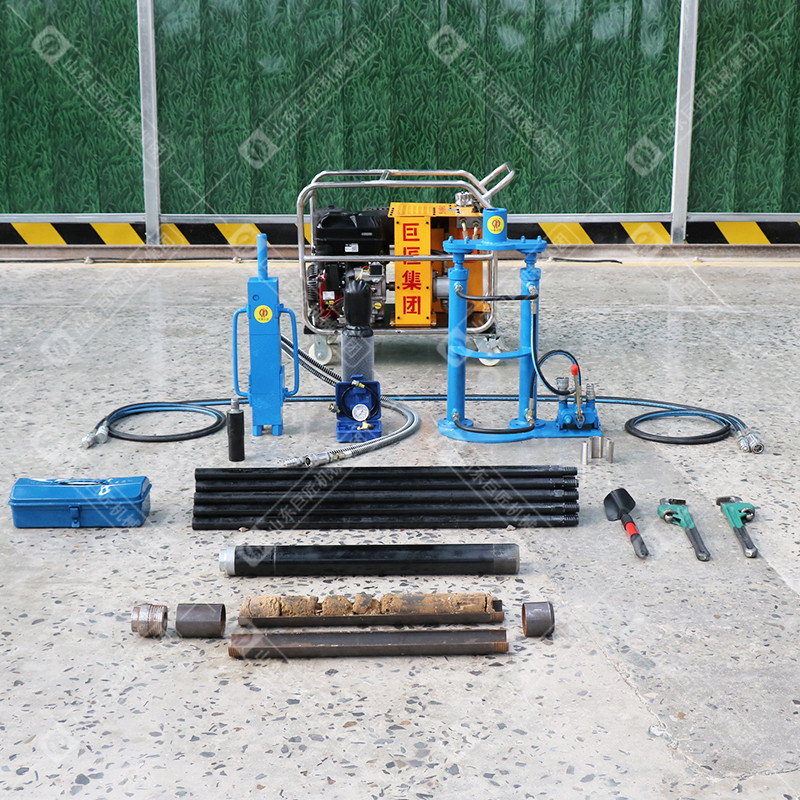

4. QTZ-4Y hydraulic portable soil drilling rig configuration list
No.
Item
Model
Unit
Quantity
1
Hydraulic soil sampling host
QTZ-4Y
set
1
2
Nitrogen gas bottle
Containing nitrogen
set
1
3
Air pressure detection tool
set
1
4
Hydraulic pump station
set
1
5
Hydraulic puller
Double oil cylinder
set
1
6
hydraulic tubing
root
2
7
Impact takeover
Φ34
pcs
1
8
Drill pipe
Φ34*1000mm
root
20
9
head
Φ73/34
pcs
1
10
Coupling
Φ73
pcs
1
11
Split pipe
Φ73
root
1
12
Inner blade tube shoe
Φ73
pcs
1
13
Outer blade tube shoe
Φ73
pcs
1
14
Tool box
set
1
15
tongs
set
2
16
wrench
set
2
17
shove
Plastic handle
set
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
