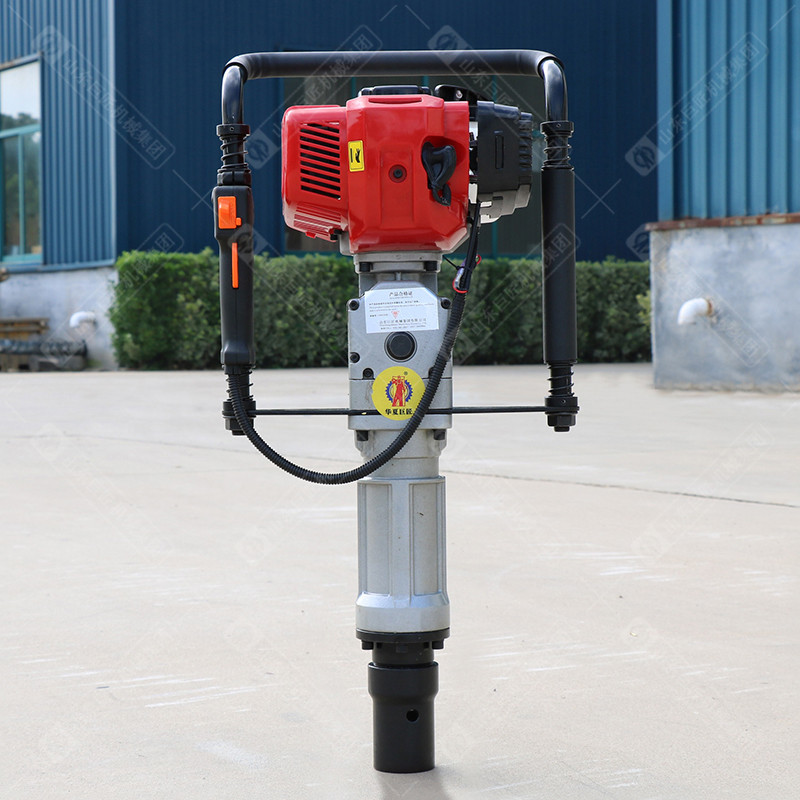

QTZ-3 Gasoline Engine Portable Soil Sampling Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QTZ-3 Gasoline Engine Portable Soil Sampling Drilling Rig
1. Brief introduction of QTZ-3 gasoline engine portable soil sampling drilling rig
QTZ-3 gasoline engine portable soil sampling drilling rig is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil sampling for 15-20 meters depth.
2. Applications of QTZ-3 gasoline engine portable soil sampling drilling rig
（1）Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
（2）Ground water survey; coastal geological survey; wetland environment investigation.
（3）Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-3 gasoline engine portable soil sampling drilling rig
Model
QTZ-3
Voltage
220V
Power
3.6KW
Fire method
Switch
Energy consumption
Low energy consumption
Number of impacts
2600/M
Impact energy
60J~79J
Coring depth
15M~20M
Host weight
22KG
4. Configuration list of QTZ-3 gasoline engine portable soil sampling drilling rig
Name
Model
Company
Number
Main engine of soil drilling rig
QTZ-3
set
1
Cylinder impact handle
Φ34
pc
1
drill pipe
Φ34*1000mm
pc
15
head
Φ50/34
pc
1
Coupling
Φ50
pc
1
Split pipe
Φ50
pc
1
Inner edge pipe shoe
Φ50
pc
1
Outer edge pipe shoe
Φ50
pc
1
head
Φ73/34
pc
1
Coupling
Φ73
pc
1
Split pipe
Φ73
pc
1
Inner edge pipe shoe
Φ73
pc
1
Outer edge pipe shoe
Φ73
pc
1
Portable penetration hammer
10KG
pc
1
Hit the head
Φ34
pc
1
Take over on both sides
Φ34
pc
1
Touch probe
Φ34
pc
1
Extractor
Three position arm
pc
1
Matching oil pot
25:1
pc
1
Oil funnel
pc
1
spark plug
pc
1
tool kit
pc
1
Pipe tongs
pc
2
Wrench
pc
1
Soil shovel
pc
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
