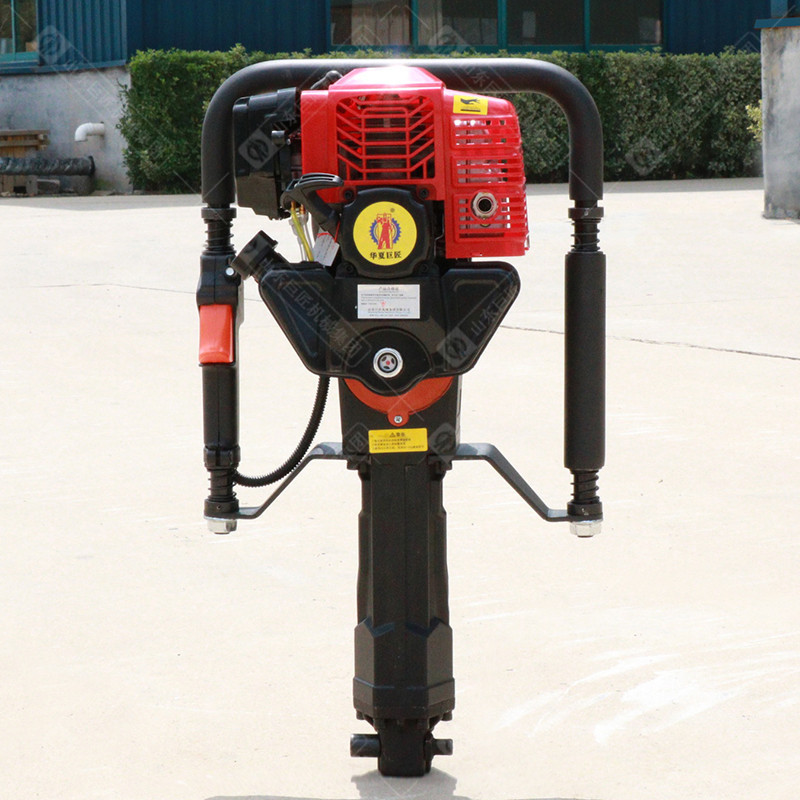

QTZ-2 Gasoline Engine Portable Soil Sampling Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QTZ-2 Gasoline Engine Portable Soil Sampling Drilling Rig
1. Brief introduction of gasoline engine portable soil sampling drilling rig
QTZ-2 gasoline engine portable soil sampling drilling rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10-15 meters.
2. Applications of QTZ-2 gasoline engine portable soil sampling drilling rig
（1）Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
（2）Groundwater survey; coastal geological survey; wetland environment investigation.
（3）Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-2 gasoline engine portable soil sampling drilling rig
Model
QTZ-2
Power
power
3.3HP
lighter way
backflush pull rope
oil consumption
0.55 l/h
Impact times
1650r/min
Impact energy
35J-65J
Core depth
10m-15m
Host weight
25kg
4. Configurations list of QTZ-2 gasoline engine portable soil sampling drilling rig
Name
Model
Company
Number
Main engine of soil drilling rig
QTZ-2
set
1
Square buckle impact handle
Φ34
pc
1
drill pipe
Φ34*1000mm
pc
10
head
Φ50/34
pc
1
Coupling
Φ50
pc
1
Split pipe
Φ50
pc
1
Inner edge pipe shoe
Φ50
pc
1
Outer edge pipe shoe
Φ50
pc
1
head
Φ73/34
pc
1
Coupling
Φ73
pc
1
Split pipe
Φ73
pc
1
Inner edge pipe shoe
Φ73
pc
1
Outer edge pipe shoe
Φ73
pc
1
Portable penetration hammer
10KG
pc
1
Hit the head
Φ34
pc
1
Take over on both sides
Φ34
pc
1
Touch probe
Φ34
pc
1
Extractor
Three position arm
pc
1
Matching oil pot
25:1
pc
1
Oil funnel
pc
1
spark plug
pc
1
tool kit
pc
1
Pipe tongs
pc
2
Wrench
pc
1
Soil shovel
pc
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
