QTZ-1S Portable Dual-tube Soil Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QTZ-1S Portable Dual-tube Soil Drilling Rig

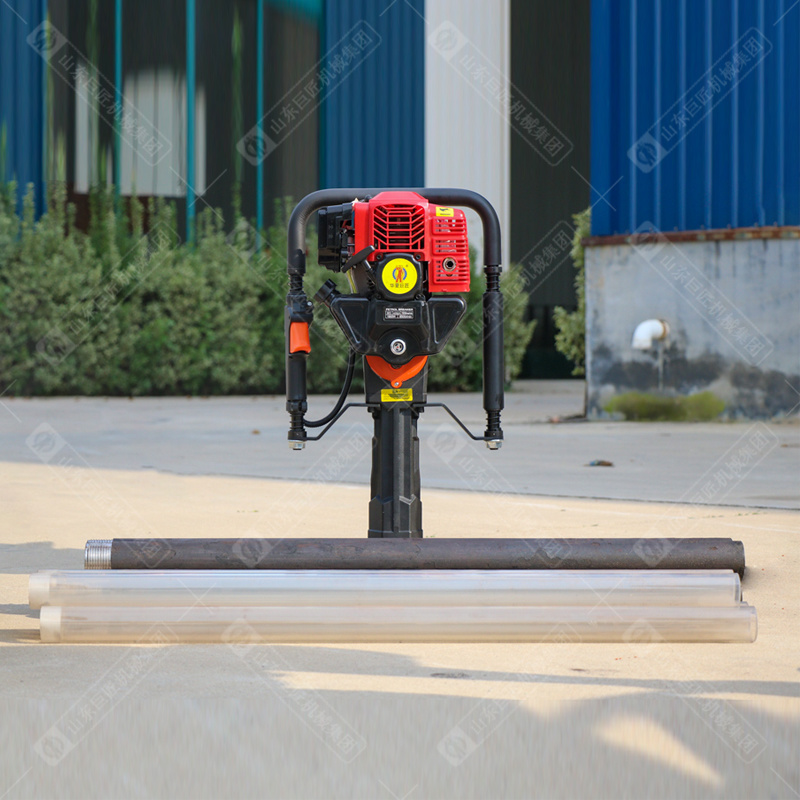

1. Brief introduction of QTZ-1S portable dual-tube soil drilling rig
QTZ-1S portable dual-tube soil sampling drilling rig is a portable soil sampling drilling rig that is held by a single person. The drilling rig adopts gasoline engine power, simple operation, high safety, stable performance, and can conduct double-pipe sampling. In the double-tube sampling process, it can effectively avoid secondary pollution, and has no pollution and less disturbance to the sampled soil. It is a high-efficiency and high-quality soil sampling device.
2. QTZ-1S portable dual-tube soil drilling rig application field
（1）Double-pipe sampling is possible, which can effectively avoid secondary pollution.
（2）Equipped with hydraulic lifting device, no need for manpower to lift the drill pipe, saving time and effort.
（3）The sampling depth can reach 5 to 10 meters, which can meet the requirements of actual sampling depth.
（4）The undisturbed soil sample taken out can maintain its integrity.
（5）The drilling rig is simple in structure, small in size, light in weight, and easy to assemble, transport and disassemble.
3. Technical parameters of QTZ-1S portable dual-tube soil drilling rig
Model
QTZ-1S
Power
Power
2.8HP gasoline engine
Fire method
Recoil drawstring
Fuel consumption
0.5L/H
Impact times
1500r /min
Impact energy
20J~55J
Core depth
5M~10M
Host weight
23KG
Hydraulic pump station power
6HP gasoline engine
Pulling force of hydraulic puller
60KN

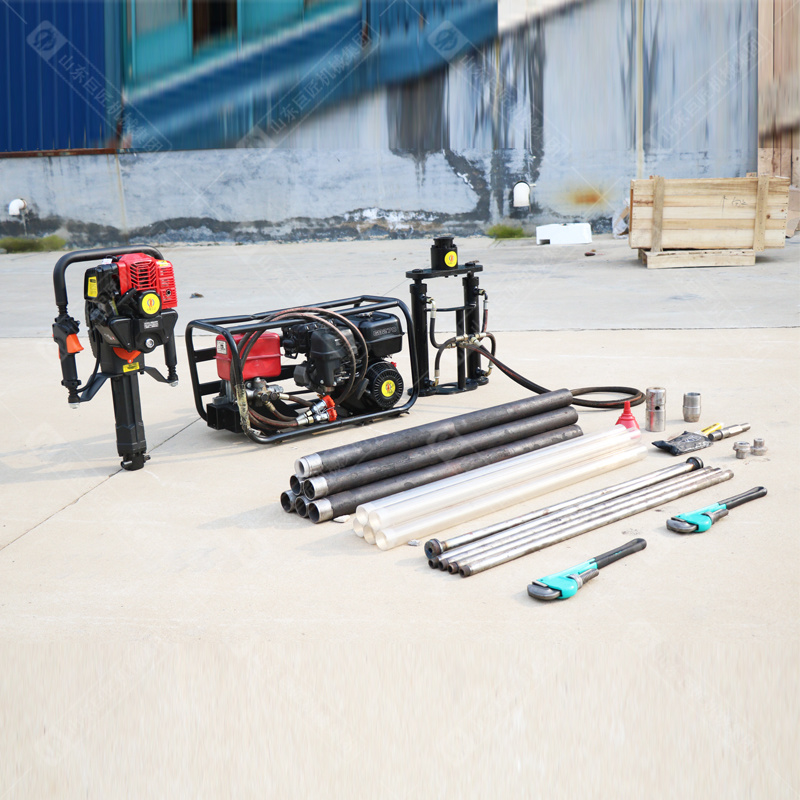

4. QTZ-1S portable dual-tube soil drilling rig configuration list
Name
Model
Unit
Quantity
Portable dual-tube soil drilling rig
QTZ-1S
set
1
Impact takeover
Φ34
pc
2
Outer tube head
Φ60
pc
1
Outer tube
Φ60*1000mm
pc
5
Outer tube boots
Φ60
pc
2
Inner top hat
pc
2
Inner center rod
Φ25*1000mm
pc
3
Center rod
(connected with inner tube to take over)
Φ25
pc
2
Soil inner tube
Φ50*1000mm
pc
5
Hydraulic power station
6HP
set
1
Hydraulic puller
Φ60
set
1
Pipe wrenches
set
2
Proportioning oil can
25:1
pc
1
Toolkit
set
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
