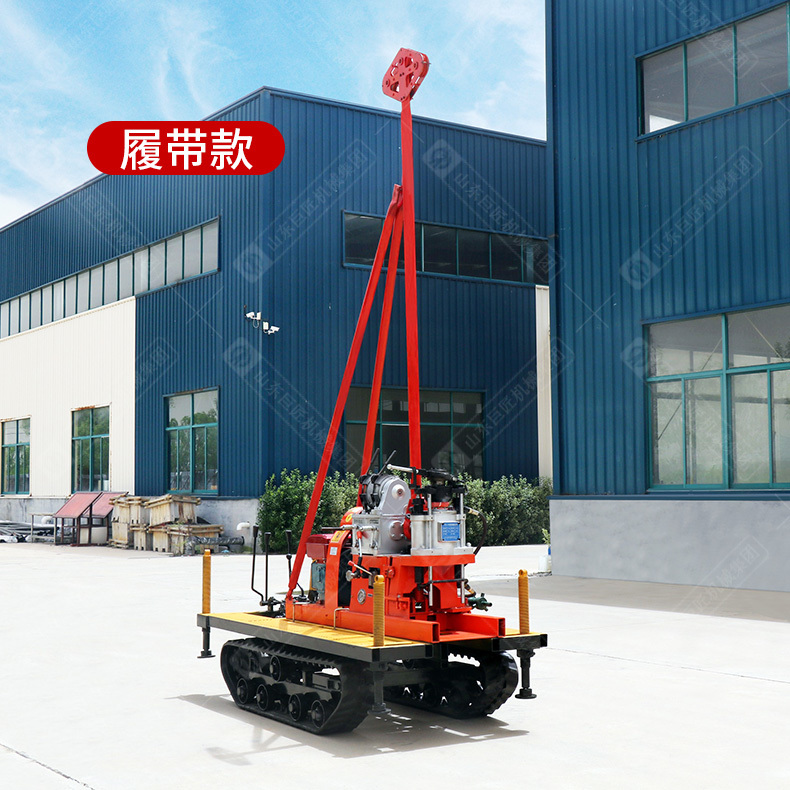

YQZ-30 Hydraulic Core Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: YQZ-30 Hydraulic Core Drilling Rig
1. Brief introductions of YQZ-30 hydraulic portable core drilling rig
YQZ-30 hydraulic portable drilling rig is a small and light hydraulic drilling machine fed by oil pressure, mainly used for general survey, geophysical exploration, road and construction drilling, shallow oil, natural gas and groundwater drilling, and can be used for drilling of dam grouting, tunnel ventilation and drainage. The rated drilling depth of YQZ-30 hydraulic portable drilling rig is 30 meters, the opening diameter is allowed to be 91mm, and the final hole diameter is 75mm.
2. Features of YQZ-30 hydraulic portable core drilling rig
• With oil pressure automatic feeding mechanism, high drilling efficiency.
• With the ball card clamping mechanism, the rod can be turned down without stopping.
• The handle is centralized, convenient to operate, safe and feasible.
• Compact structure and small floor space.
• The casing of the rig gyrator and gearbox is made of aluminum alloy, which reduces the weight of the fuselage.
• Strong decomposition ability, easy to relocate, suitable for hilly, mountainous and other complex terrain work.3. Technical parameters of YQZ-30 hydraulic portable core drilling rig
No.
Item
Unit
Parameter
1
Drilling diameter
mm
75
2
Drilling depth
m
30
3
Drill pipe
mm
φ42
4
Vertical shaft speed
rpm
136/338/578
5
Vertical axis stroke
mm
400
6
Vertical shaft lifting force
kn
10
7
Winding pulling force
kn
0-4kn
8
Host power
diesel engine
R180
9
Rig weight
kg
375
10
Rig size
mm
1630*950*1050
4. Configuration list of YQZ-30 hydraulic portable core drilling rig
No.
Item
Specification
Unit
Quantity
1
Drilling rig host
YQZ-30
set
1
2
Drill pipe (including joint)
42mm
m
30
3
Head joint
42/57mm
pc
2
4
Head
89mm
pc
1
5
Opening hole pipe
89mm
pc
1
6
Alloy bit
91mm
pc
1
7
Head
73mm
pc
1
8
Core tube
73mm
pc
1
9
Diamond bit
75mm
pc
1
10
Drill tower
3m
set
1
11
Wire rope
circle
1
12
Rope buckle
set
1
13
U-shaped ring
pc
1
14
Extractor
pc
1
15
Faucet
pc
1
16
Flat main rod
2m/pc
pc
1
17
Main rod reduction
pc
1
18
Cushion fork
57mm
pc
1
19
Spanner
57mm
pc
1
20
Free clamp
73/89mm
pc
2
21
Water pump
Processing onto
the rig
pc
1
22
Inlet and outlet water pipe
pc
1
23
Water filter
pc
1
