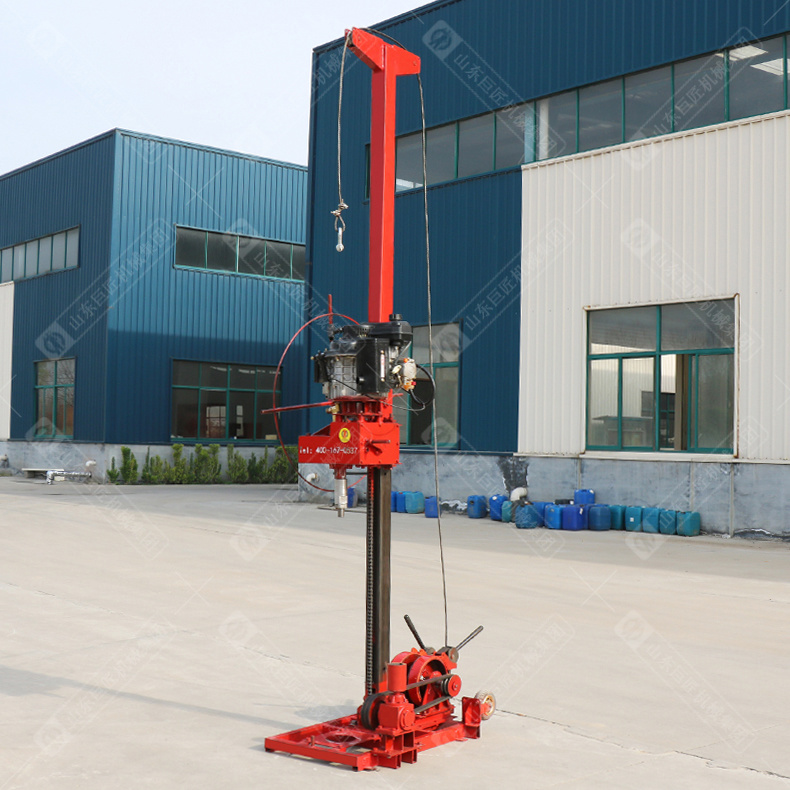

QZ-3 Diesel Engine Sampling Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QZ-3 Diesel Engine Sampling Drilling Rig
1. Brief introductions of QZ-3 diesel engine sampling drilling rig
The QZ-3 diesel engine sampling drilling rig is independently developed by Shandong Master Machinery Group, which is a portable multi-purpose drilling rig. The QZ-3 diesel engine sampling drilling rig is equipped with a hoist, which is more convenient for geological drilling and lifting. It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.
The QZ-3 diesel engine sampling drilling rig uses diesel power, and it is more convenient to purchase oil. The rig is reasonable in design, advanced in structure, easy to assemble and disassemble, small in size, light in weight and easy to transport, which brings great convenience for field investigation and construction.
2. Technical parameters of QZ-3 diesel engine sampling drilling rig
Model
QZ-3
Borehole diameter (mm) 46-110
Drilling depth（m）
soil φ110：15-20m
rock φ91：20-25m
rock φ75：25-30m
rock φ60：30-40m
rock φ46：40-50m
Drilling pipe diameter (mm)
30
Torque（n.m）
180
Dimension（l*w*h）
680*1200*3800(highly customizable)
Weight（kg）
165
3. Configuration List of QZ-3 diesel engine sampling drilling rig
Item
Specifications
Unit
Quantity
Remarks
Base
QZ-3
pc
1
Geological engineering drilling rig
Winding engine
pc
1
Drilling tower
pc
2
Manual windlass
pc
1
Diesel engine
pc
1
Gear box
pc
1
Drilling pipe including joint
30*1000
pc
15
Drill pipe
Drilling pipe including joint
30*2000
pc
5
Reducing nipple
58/38
pc
1
60mm core drill tool
Core barrel
58*800
pc
1
Core barrel
58*1500
pc
1
Diamond bit
60
pc
1
Reducing nipple
73/38
pc
1
75mm core drill tool
Core barrel
73*800
pc
1
Diamond bit
75
pc
1
Safety clamp
Tool
Pipe wrench
Drill rod tong
Oil seal
pc
2
Vulnerable parts
Safety plate
pc
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
