QZ-1A Two Phase Electric Sampling Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QZ-1A Two Phase Electric Sampling Drilling Rig
1. Brief introductions of QZ-1A two phase electric sampling drilling rig

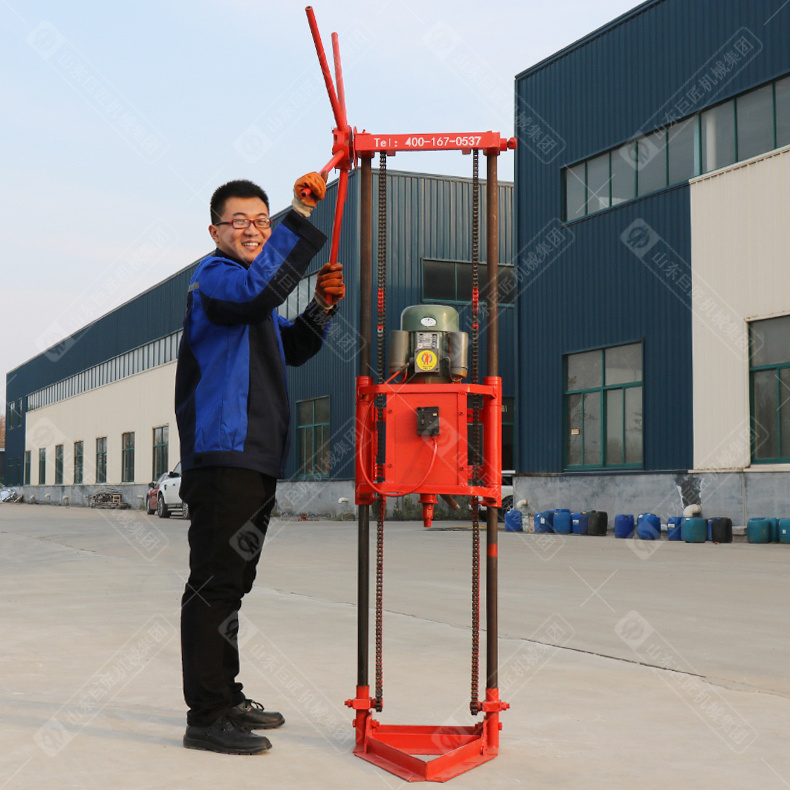

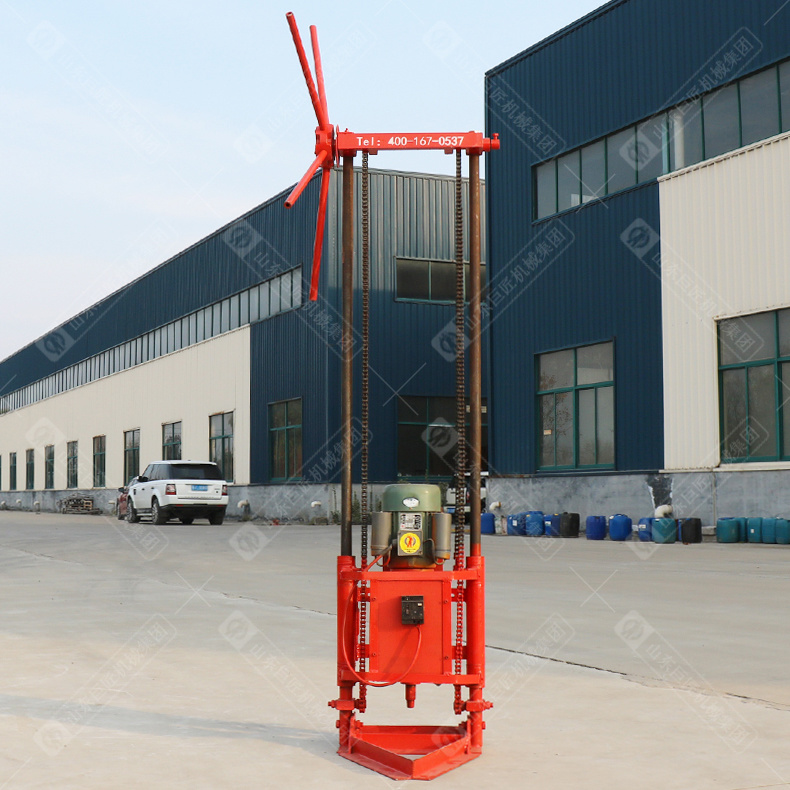

QZ-1A is a two phase electric sampling drilling rig produced by Shandong Master Machinery Group. It is suitable for all kinds of geological exploration, like industrial and civil buildings, bridges, railways, roads and so on. QZ-1A two phase electric sampling drilling rig is only 80kg; height is less than 2 meters, and the drilling rig can been break down structure. Hence it is easy to move and operated.
2. Technical parameter s of QZ-1A two phase electric sampling drilling rig
Model
QZ-1A
Borehole diameter (mm)
32-46
Drilling depth (m)
soil : 20-25
rock : 15-20Drilling pipe diameter (mm)
25
Rotate speed（r/min）
175
Torque (n.m)
80
Power (kw)
3
Dimensions (l*w*h)
600mm*450mm*1900mm
Weight (kg)
80
3. Configuration list of QZ-1A two phase electric sampling drilling rig
Item
Parameters
Unit
Quantity
Two phase electric sampling drilling rig
QZ-1A
set
1
Drill pipe(mm)
25*1500
pc
6
Drill pipe(mm)
25*800
pc
8
Joint(mm)
32
pc
14
Core barrel(mm)
32*800
pc
1
Alloy bit(mm)
32
pc
1
Reducing nipple(mm)
45/32
pc
1
Core barrel(mm)
45*800
pc
1
Alloy bit(mm)
46
pc
1
Three-wing bit(mm)
60
pc
1
Safety clamp
pc
1
Water seal
Y Type 30*45*8
pc
4
Control wheel
set
1
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
