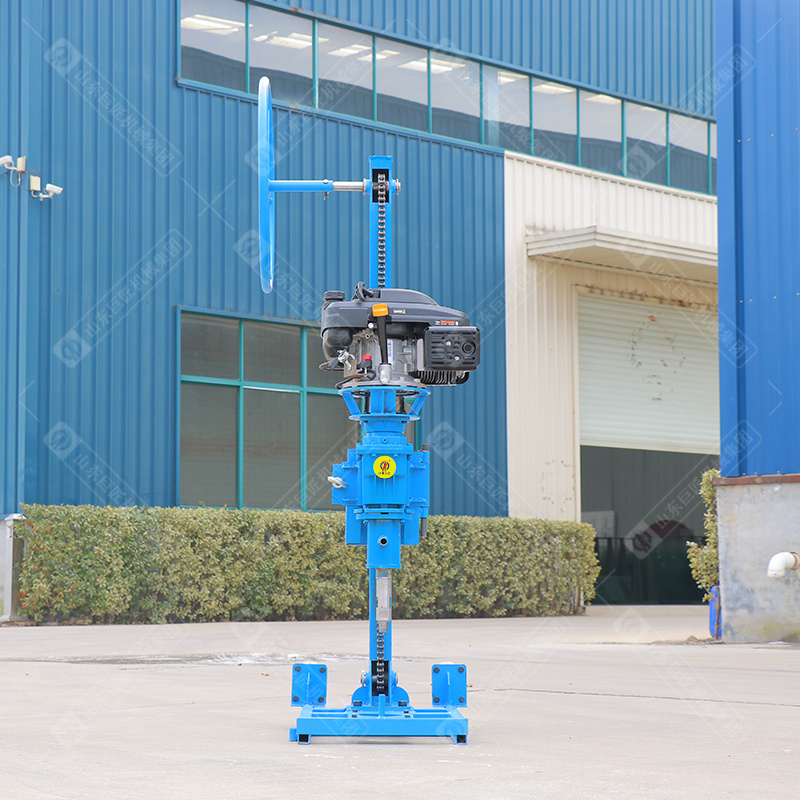

QZ-1B Gasoline Engine Portable Sampling Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: QZ-1B Gasoline Engine Portable Sampling Drilling Rig
1. Brief introduction of QZ-1B gasoline engine portable sampling drilling rig
QZ-1B gasoline engine portable sampling drilling rig is a portable and multi-purpose micro-engineering drilling rig, which is suitable for geological survey, geophysical prospecting holes, grouting and drilling, embedded parts in industrial and civil buildings, bridges, railways, highways, hydropower and other industries. Pilot holes, blast holes, inspection holes, small household wells, etc.
Drilling rig features: compact structure, small size, light weight, easy to move.
2. Parameters of QZ-1B gasoline engine portable sampling drilling rig
Model
QZ-1B
Drilling diameter (mm)
φ33～φ91
Drilling depth (m)
Soil layerφ91: 10-15 meters;
Rock φ91: 0-5 meters;
Rock φ75: 5-10 meters;
Rock φ60: 10-15 meters;
Rock & phi; 46: 15-20 meters.Drill pipe diameter (mm)
φ25
speed (r/min)
200~570
Torque (N.m)
110
Gasoline engine horsepower (HP)
5 (3.5KW)
Gasoline engine displacement (cc)
196
Dimensions（L*W*H）
600*450*1900
Rig weight (KG)
90
3. Configuration list of QZ-1B gasoline engine portable sampling drilling rig
No.
Item
Parameter
Unit
Quantity
1
Drill host
3.2HP
set
1
2
Drill pipe (including adapter)
25*800mm
root
13
3
diameter
25/25
one
1
4
head
25mm
one
1
5
core tube
25*600mm
root
1
6
diamond bit
26mm
one
1
7
diameter
25/36
one
1
8
head
36mm
one
1
9
Core tube
36*600mm
root
1
10
diamond bit
36mm
one
1
11
Sweeping bit
36mm
one
1
12
High pressure water pump
gasoline
set
1
13
High pressure suction pipe
15 meters
set
1
14
Rig water supply pipe
set
1
15
Proportion pot
one
1
16
Mud pump suction pipe
set
1
17
Mud pump suction faucet
one
1
18
Maintenance Tools
set
1
19
Orifice pad
one
1
20
Spark plug
pcs
2
21
Wrench
pcs
1
22
Pipe wrenches
pcs
2
23
Backpack
pcs
1
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
