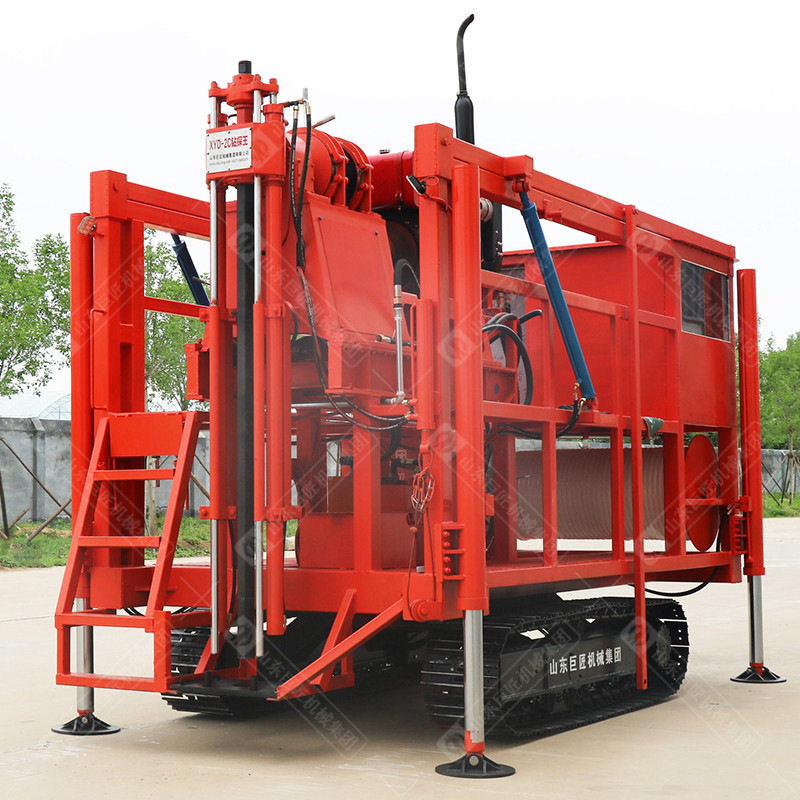

XYD-2C Hydraulic Core Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XYD-2C Hydraulic Core Drilling Rig
1. Brief introduction of XYD-2C hydraulic core drilling rig
XYD-2C hydraulic core drilling rig is an upgraded core drilling equipment based on XY-2 hydraulic drilling rig. The whole machine adopts a heightened design, which can achieve a pole increase of 2 meters at a time, and the efficiency is greatly improved. The steel crawler chassis is suitable for difficult mountain roads.It is widely used in road, railway, house, and bridge surveys. It has outstanding performance in backfilling and water well drilling. The drilling rig is now affectionately referred to as the "Master Drilling King" by the majority of drillers.
2. Characteristics of XYD-2C hydraulic core drilling rig
(1)The drilling rig adopts heightened design, which provides space for the drilling rig to add auxiliary function area.
(2)The main machine is equipped with a fixed clamping mechanism and an elongated main rod, which can realize a reciprocating rod without lifting the drill, and the drilling efficiency is greatly improved.
(3) The hydraulic tower rise and fall is supported by two oil cylinders, which is safe and convenient to operate.
(4) Equipped with rest space, which can be used for rest of staff.
(5)Configure the reel and water pipe to provide clear circulating water for the drilling rig from the nearby water source.
(6)Equipped with steel crawler chassis, strong off-road performance, easy to deal with various complex operating sites.
(7)Equipped with hydraulic high outriggers, used for leveling of drilling rig to ensure the stability of the fuselage.
(8)Centralized control handle, reasonable layout, flexible and reliable.
(9)Turn on the power knife, turn the start key to the start position, and start with one click.
(10)The main machine is equipped with a sliding chute for easy lifting.
3. Technical parameters of XYD-2C hydraulic core drilling rig
Model
XYD-2C
Drilling depth
300m
Drilling diameter
75-108mm
Active drill pipe specification
79*89mm
Active drill pipe length
2810mm
Power
33kW
Mud pump
BW-160
Drilling rig weight
6T
Overall dimensions (excluding tower)
4.7*2.4*3.2m
Tower
Drilling rig height
6200mm
Maximum carrying weight of the drilling rig
2000Kg
Reel
Reel length
1500mm
Water pipe winding
300m
Caterpillar chassis
Caterpillar specifications
2.6*0.4m
Caterpillar bearing capacity
8000Kg
Rated climbing slope
0～30°
Walking speed
5～20km/h
Note: The product is continuously improved and subject to change without notice, please prevail in kind.
