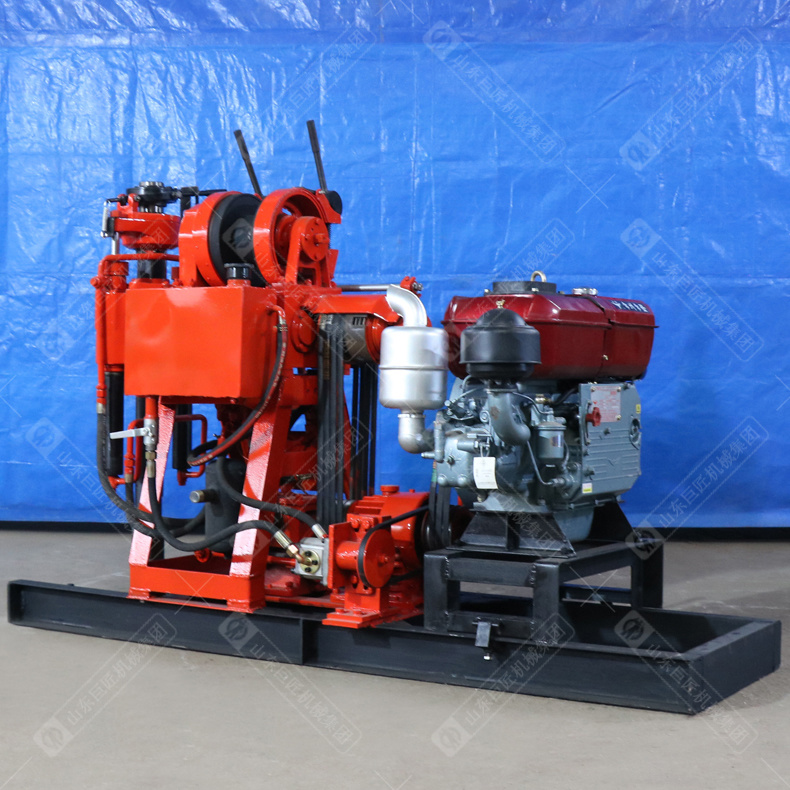

XY-150 Hydraulic Core Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XY-150 Hydraulic Core Drilling Rig
1. Applications of XY-150 hydraulic core drilling rig
XY-150 core drilling rig is XY-1A core drilling rig is mainly used for geological survey exploration, geophysical exploration, foundation investigation of roads and high-rise buildings, water wells, blast holes and other drilling projects.
2. Parameters of XY-150 hydraulic core drilling rig
Model
XY-150
Drilling depth(m)
150
Maximum opening diameter（mm）
219
The final hole diameter（mm）
73
Rod diameter（mm）
42/50
Spindle speed (r/min)
140/295/470/790/1010
Spindle stroke（mm）
450
Hoisting capacity (kn)
14
Steel wire diameter（mm）
9.3
Maximum pressure (mpa)
1.2
Working pressure (mpa)
0.7
displacement（l/min）
150
Hydraulic pump pressure (mpa)
1.2
Hydraulic pump rotation speed (r/min)
1800
Matched driving power (diesel engine and motor)
S1105 diesel engine and 11kw motor
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
