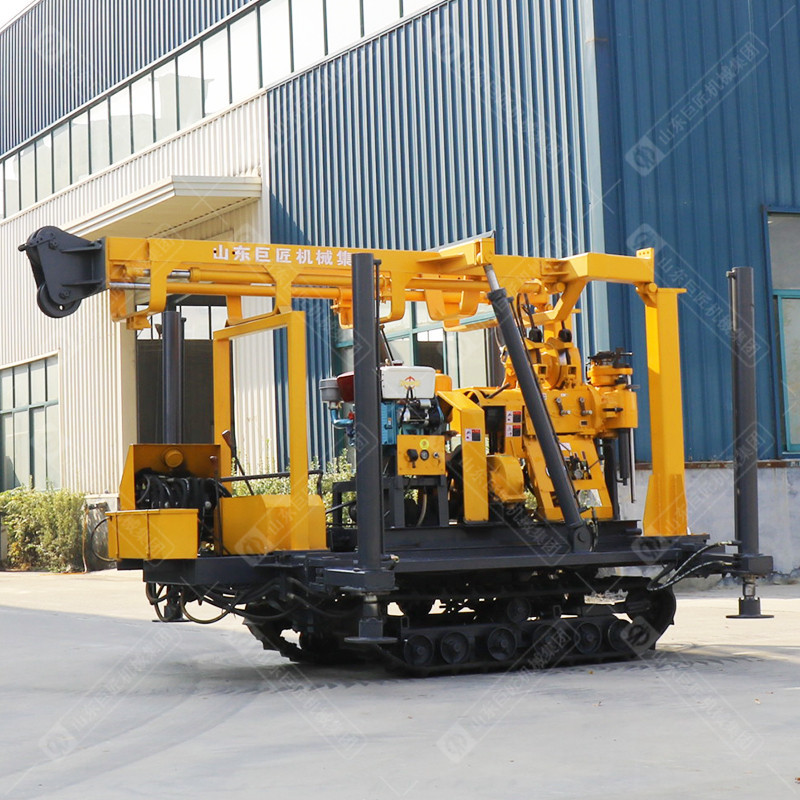

XYD-200 Crawler Hydraulic Core Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: XYD-200 Crawler Hydraulic Core Drilling Rig
1. Characteristics of XYD-200 crawler hydraulic core drilling rig
Drilling rig uses automatic telescopic drilling rig ,it uses two high-strength cylinders to support.There is a group of hydraulic valves to control super nation of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.
The chassis uses a rubber belt track so that the weight is light,the cost of life cycle is lower.It can reduce noise of the vehicle walking mechanism,reduce car body's shake,reduce the oil consumption.It can walk on the pavement of city and don't hurt the pavement.
The chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs install rate and adjust is fast and convenient, can be used for work plane leveling.It can make loading and unloading reduce the cost of to improve efficiency.It also can be used as auxiliary support when the track drilling rig is working.
Using 24V electric starting diesel engine is reduced the operate's labour intensity greatly.Especially in cold season,when diesel engine start hardly,it will show superiority vastly.
The machine is equipped with BW-160 independent mud pump,the pump flow and pressure are big,the maintenance is convenient,the parts of the machine are convenient to buy all over the country.
2. Technical parameters of XYD-200 crawler hydraulic core drilling rig
Model
XYD-200
Drilling depth
200m
Maximum opening diameter
75-300mm
Final hole diameter
75mm
Kelly
53/59*4200mm
Drill pipe diameter
50/60mm
Drilling angle
90°-75°
Auxiliary power diesel engine
14.7kw 2200r/min
Structural weight/Size
3000kg 3800*1950*2700
Spindle
Spindle speed
64/128/287/557r/min
Spindle stroke
450mm
Windlass
Single rope lifting force
24kn
Single rope lifting speed
0.12/0.22/0.49/0.95m/s
Drum diameter
140mm
Wire rope diameter
13mm
Wire rope capacity
35m
Derrick
Rated load
5t
Effective height
6m
Tower leg specification
89mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
