HZ-80Y Hydraulic Core Drilling Rig

It is used for general survey exploration, geophysical exploration, road and construction exploration, blast hole drilling, civil water wells and other drilling projects; Drill bits such as alloy, steel grit and steel particles can be selected for drilling according to the different formations; It can drill sandy clay and bedrock layers of grade 2-9.

Keywords:

HZ-80Y Hydraulic Core Drilling Rig HZ-80Y Hydraulic Core Drilling Rig

Categories：

Hydraulic Core Drilling Rig

Phone：

+86-182-6677-0909

Product Message

Related Products

产品描述

产品描述

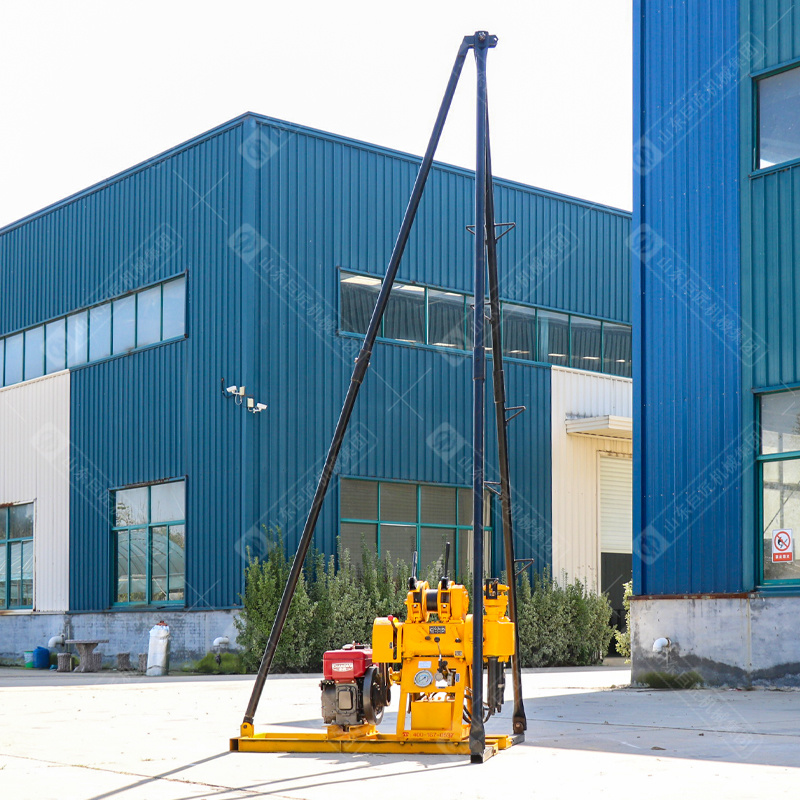

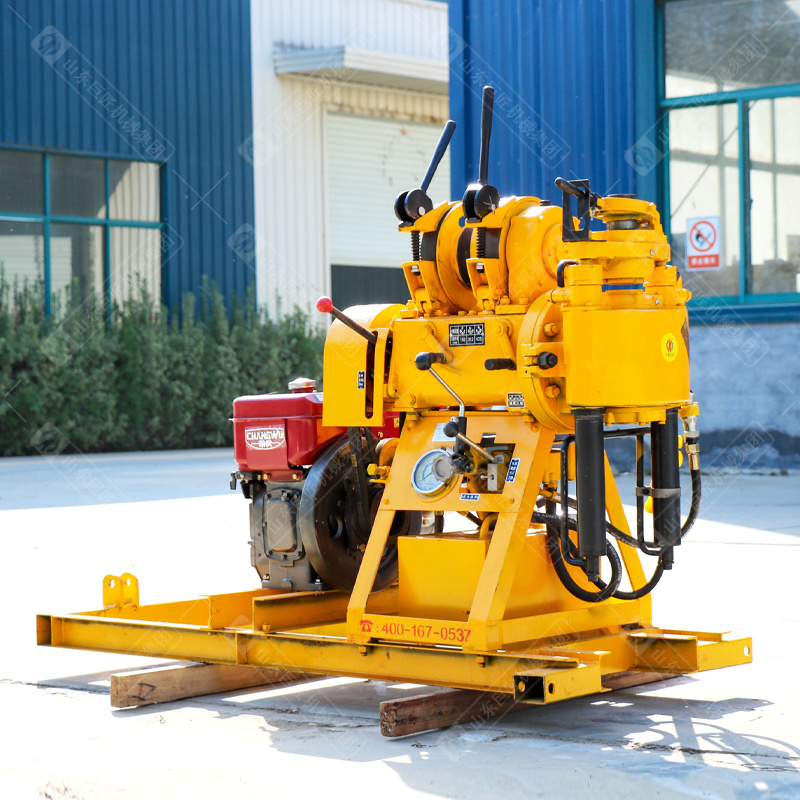

Commodity name: HZ-80Y Hydraulic Core Drilling Rig

1. Brief introduction of HZ-80Y hydraulic core drilling rig

（1）It is used for general survey exploration, geophysical exploration, road and construction exploration, blast hole drilling, civil water wells and other drilling projects;

（2）Drill bits such as alloy, steel grit and steel particles can be selected for drilling according to the different formations;

（3）It can drill sandy clay and bedrock layers of grade 2-9.

2. Main features of HZ-80Y hydraulic core drilling rig

（1）With hydraulic automatic feeding mechanism, high drilling efficiency.

（2）Centralized handle, convenient operation, safe and feasible.

（3）The structure is compact, the drilling rig, water pump and diesel engine are all installed on the same chassis, occupying a small area.

（4）Light weight, strong decomposition ability, easy to relocate, suitable for working in plains and mountainous areas.

3. Parameters of HZ-80Y hydraulic core drilling rig

Model	HZ-80Y
Drilling diameter	75-110mm
Drilling depth	80m
Drill rod	42mm
Main engine power	12HP
Rig weight	400KG
Vertical shaft speed	156/312/625rpm
Vertical axis stroke	400mm
Vertical shaft lifting capacity	10KN
Displacement	95L/min
Working status	17508201000mm
Construction status	180017604400mm
