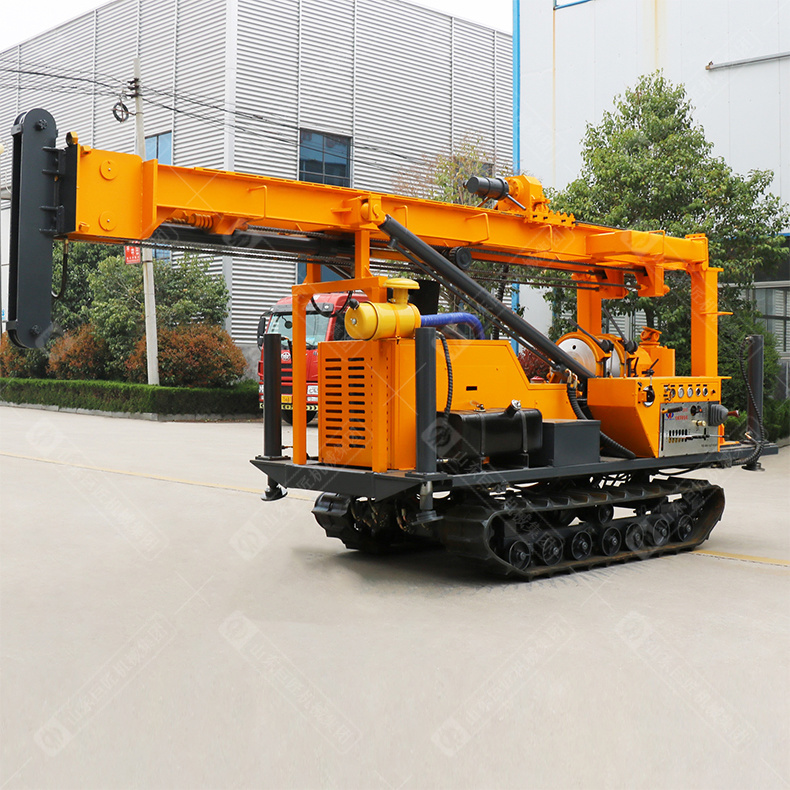

JDL-300 Mechanical Top Drive Core Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: JDL-300 Mechanical Top Drive Core Drilling Rig
1. Introduction of JDL-300 mechanical top drive core drilling rig
JDL-300 mud/air drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment with mechanical top head. It is a good solution to the difficulty of drilling in the soil layer for DTH rig and the low efficiency of drilling for mud rotary rig in the hard rock, gravel and pebble layer. The mud/air drilling rig adapts to various soil strata. The mud/air drilling rig is efficiency and energy saving to drill water well and geological exploration of core sample.
2. Features of JDL-300 mechanical top drive core drilling rig
（1）The rig can be equipped with a five-speed manual integrated gearbox, hydraulically separated bearings, full synchronizer shifting, high reliability and long service life.
（2）The drilling rig adopts a mechanical winch, which has a fast lifting speed and is easy to handle the bottom hole accident.
3. Parameters of JDL-300 mechanical top drive core drilling rig
Model
JDL-300
Working stratum
Loose soil layer and bed rock(hardness:F6~20)
Drilling method
Mechanical top head rotation, hydraulic feeding, work with mud pump or DTH.
Drilling capacity
Φ42 Mud drilling depth
530m
NQ wireline coring
600m
Φ75 Air Drilling depth
300m
Borehole dia.
≤Φ350
Power
Diesel engine model
YN27
Rated power
42kw
Rated speed
2400rpm
Drive head
Rotary speed
50~10200r/min
Max. torque
5000N.m
Feeding system
Lifting capacity
4T
Thrusting capacity
2.1T
Winch capacity
Hydraulic tool winch(optional)
1.5T
Mechanical winch
4.5T
Drill pipe
Drill pipe dia.
Φ76/Φ89/Φ102
Drill pipe length
3000mm
Crawler chassis
Walking speed
0~2km/h
Climbing angle
20°
Dimension
Transport
5380*1575*2500mm
Working
3480*1575*6280mm
Weight
4380kg
Air compressor
Air pressure
10.5~24.6bar
Air consumption
16~35m³/min
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
