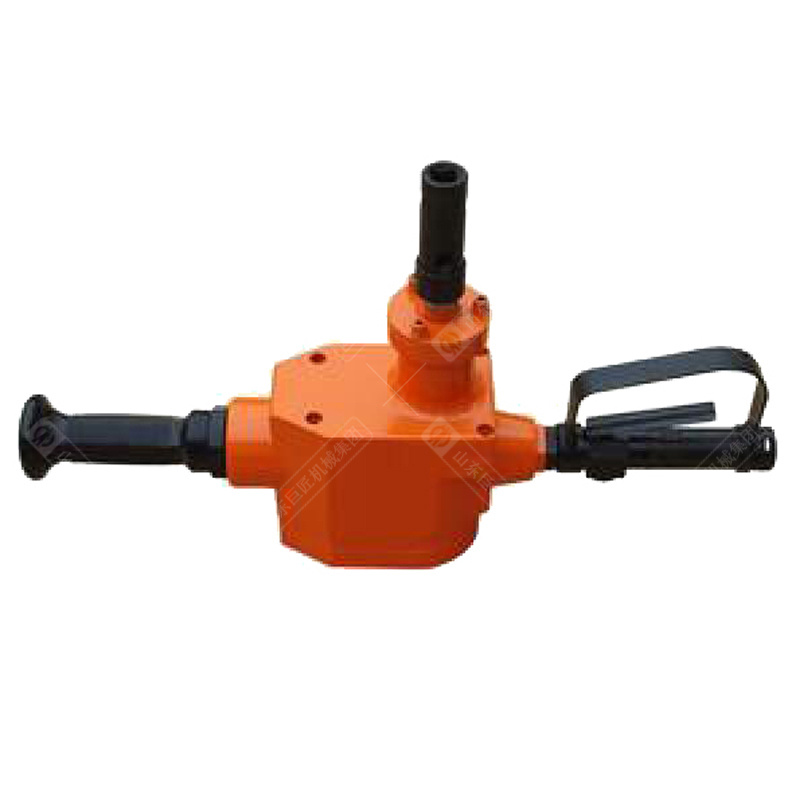

ZQSJ-65/2.5 Column Support Pneumatic Hand-held Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ZQSJ-65/2.5 Column Support Pneumatic Hand-held Drilling Rig
1. Scope of application
ZQSJ-65/2.5 column-supported pneumatic hand-held drilling rig is mainly used for bolt support of side walls of coal roadways and semi-coal roadways, blasting holes ahead, stirring of bolts and installation of nuts, and can also be used for drilling water exploration Vascon. The power source of the drilling rig is compressed air to avoid safety hazards caused by the use of electric equipment on the working face. The drilling tools originally used for coal electric drills are suitable for this drilling rig. It is an ideal choice for the coal mining industry to replace coal electric drills.
2. Features of drilling rig
ZQSJ-65/2.5 column-supported pneumatic hand-held drilling rig is a portable drilling rig, which has the characteristics of safety explosion-proof, large torque, high speed, light weight, small size, high efficiency, simple structure and convenient maintenance. High quality, good support quality, low labor intensity for workers, and low footage cost.
3. Performance parameters
Serial number
Performance parameters
Unit
ZQSJ-65/2.5
1
Applicable air pressure range
MPa
0.4~0.63
2
Rated pressure
MPa
0.5
3
Rated Drilling Torque
N.m
65
4
Rated speed
r/min
380
5
Rated power
KW
2.5
6
No-load speed
r/min
840
7
Load torque
N.m
≤140
8
Power Stall Torque
N.m
155
9
Air consumption
m³/min
3.6
10
Sound power level
dB(A)
≤112
11
Sound pressure level
dB(A)
≤95
12
Rinse water pressure
MPa
0.6~1.2
13
machine weight
KG
12.6
14
Reference drilling depth
m
40
Note: The product is constantly improving, and if there is any change without prior notice, please refer to the actual product.
