ZM18 Dry Coal Drill
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ZM18 Dry Coal Drill

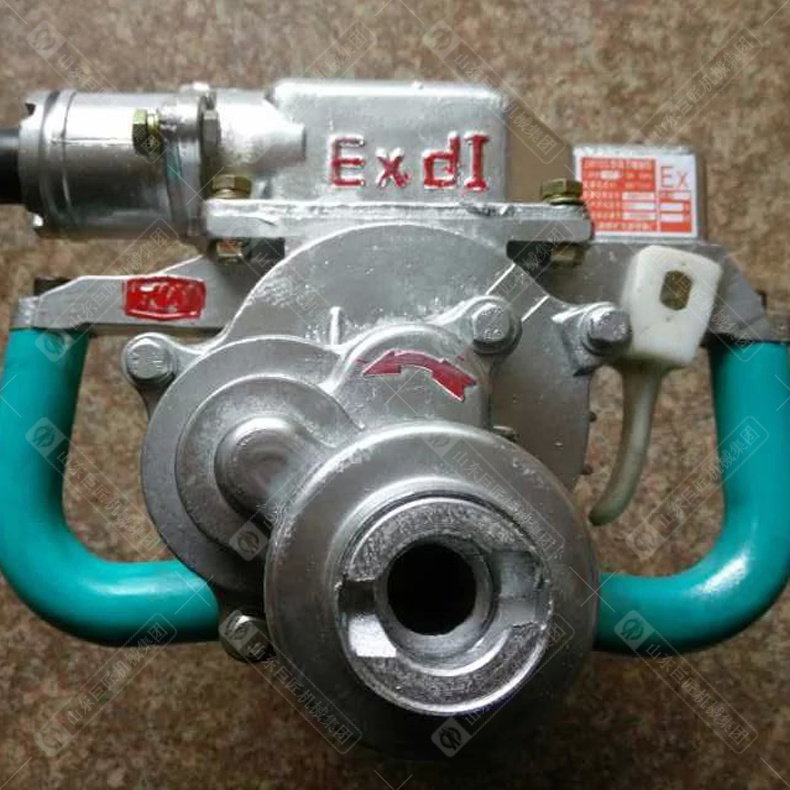

1. Brief introduction of ZM18 dry coal drill
ZM18 dry coal drill is a hand-held direct-start explosion-proof electric drill, which is suitable for coal mines and environments with explosive mixed gases such as methane and coal dust in the surrounding medium. In the power supply network with AC 50Hz and voltage 127V, Mining and excavation work is used for drilling holes in medium-hard and hard coal seams.
2. Parameters of ZM18 dry coal drill
Project
Unit
ZM18
Motor rated power
KW
1.8
Motor rated voltage
V
127
Motor rated current
A
11.5
Motor rated frequency
Hz
50
Motor rated speed
r/min
2800
Motor phase number
phase
3
Spindle rated speed
r/min
520
Spindle Rated Torque
N． m
35
How it works
min
s2-30
Rig weight
Kg
17.5
Drilling diameter
mm
Φ38～45
Cable specification
UZ or UP type 3×4+1×2.5
Note: The product is constantly improving, and if there is any change without prior notice, please refer to the actual product.
