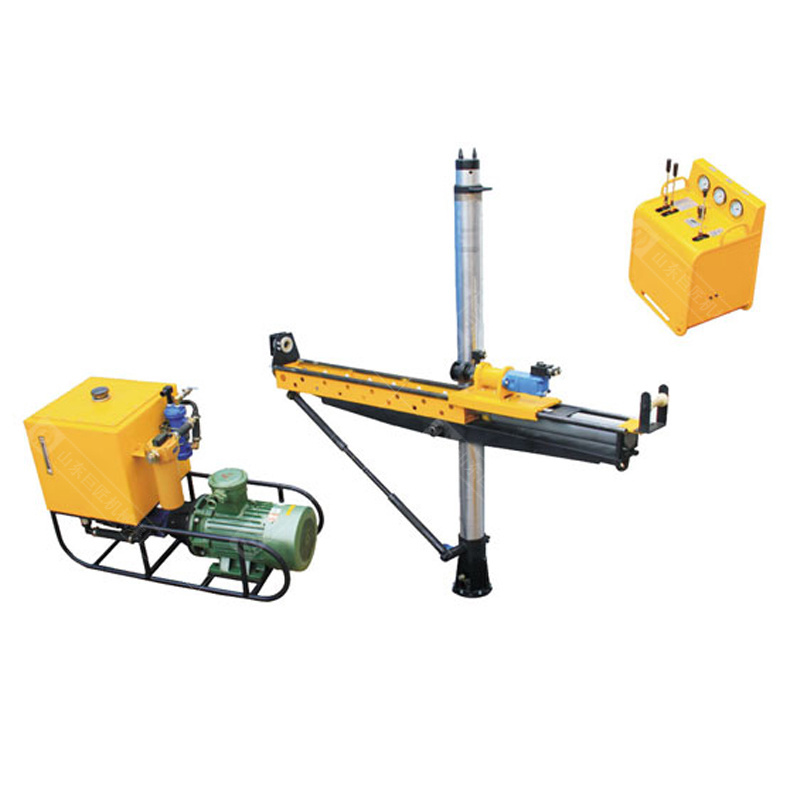

ZYJ-380/210 Column Hydraulic Rotary Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ZYJ-380/210 Column Hydraulic Rotary Drilling Rig
1. Introduction of ZYJ-380/210 Column Hydraulic Rotary Drilling Rig
ZYJ-380/210 hydraulic column rotary drilling rig is suitable for caving drilling, water exploration and gas exploration holes, water discharge holes, cable holes, gas discharge holes, geological data holes and other fields under complex conditions and rock formation roadways. The sliding frame can be moved on the bracket, and the stroke of the oil cylinder is divided into: 1300mm and 1800mm, which has wide applicability.
ZYJ-380/210 column-type hydraulic rotary drilling rig is a column-type external guide rail rotary drilling rig, which has reasonable structure, precise technology, strong process adaptability, safe and feasible operation, good disassembly, convenient transportation and maintenance, and can be used with various Features such as supporting the use of drilling tools.
2. Parameters of ZYJ-380/210 Column Hydraulic Rotary Drilling Rig
Component
Project
Unit
Value
Host
Work pressure
MPa
14
Rated torque
N.m
380
Rated speed
r/min
210
Rated flow
L/min
50
Propulsion
kN
20
Return velocity
mm/min
5000
Advance itinerary
mm
1100
Rail length
mm
1900
Rig Working Height
mm
750~2480
Machine weight
kg
185
No-load propulsion speed
mm/min
5000
Rinse water pressure
MPa
0.3-1.0
Drilling diameter
mm
65~113
Drilling speed
mm/min
200
Noise
Sound pressure level
dB(A)
92
Sound power level
dB(A)
108
Pump station
Rated pressure
MPa
16
Motor rated speed
r/min
1460
Rated flow
L/min
55
Explosion-proof motor
—
YBK2-160L-4
Motor power
kW
15
Motor voltage
V
380/660
Rated current
A
30.1/17.4
Fuel tank effective volume
L
120
Dimensions (L×W×H)
mm
1800×550×800
Weight
kg
320
Operation console
Weight
kg
27
Dimensions (L×W×H)
mm
390×390×730
Note: The product is constantly improving, and if there is any change without prior notice, please refer to the actual product.
