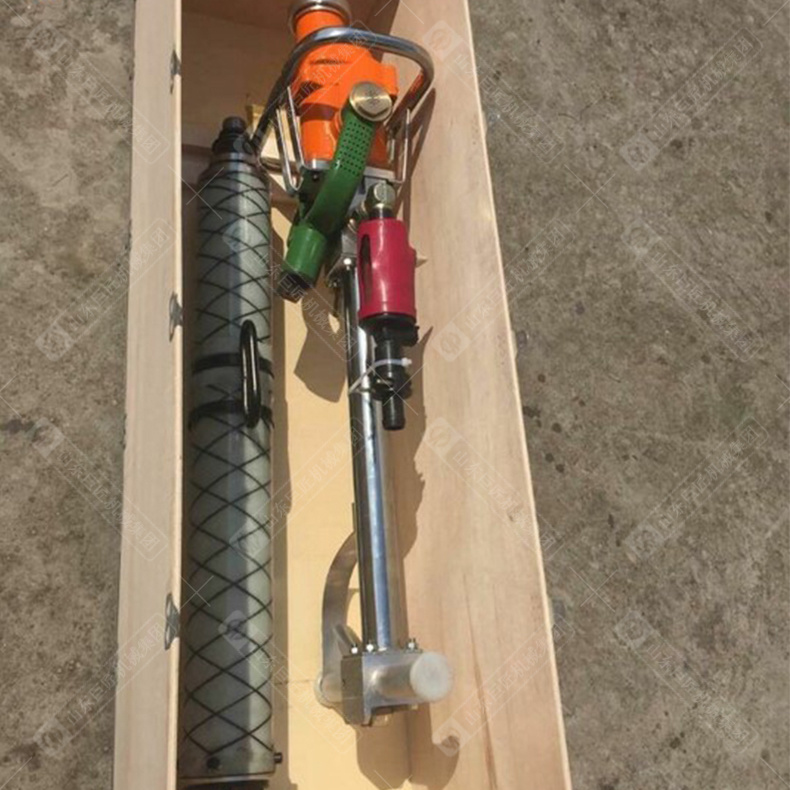

MQTB-80/2.3 Pneumatic Outrigger Roof Bolter Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: MQTB-80/2.3 Pneumatic Outrigger Roof Bolter Drilling Rig
1. Application scope of MQTB-80/2.3 pneumatic outrigger roof bolter drilling rig
MQTB-80/2.3 Pneumatic Outrigger Side Bolter Drilling Rig is suitable for coal side bolting operations in coal roadways and semi-coal roadways with rock hardness 0-f8. It can not only drill bolt holes, but also drill anchor cable holes. It can also stir and install resin anchor rods and anchor cables, without the need for other equipment, the anchor nut can be installed and tightened at one time to meet the pre-tightening force requirements of the initial anchor.
2. Features of MQTB-80/2.3 pneumatic outrigger roof bolter drilling rig
The pneumatic outrigger roof bolter drilling rig is small in size, light in weight, easy to operate and easy to maintain. When the motor starts, it stabilizes at the set point. Gear-type air motor with stable operation and high reliability. Coal side rock bolt drilling rig with outriggers, with increased torque, can drill holes for anchor rods, anchor cables, and detection holes for gas and water, which improves applicability and reduces labor costs. labor intensity.
3. Parameters of MQTB-80/2.3 pneumatic outrigger roof bolter drilling rig
Parameter/Model
MQTB-80/2.3
Working pressure (MPa)
0.4～0.63
Rated air pressure (MPa)
0.5
Rated speed (r/min)
275
Rated torque (N.m)
80
Stall torque (N.m)
180
No-load speed (r/min)
580 and above
Air consumption (m³/min)
4.0
Thrust(KN)
0-2.8
Flush water pressure (MPa)
0.6～1.2
Noise (dBA)
0-95
Drill tail hexagonal size (mm)
19/22
The weight of the whole machine (Kg)
35
Note: The product is constantly improving, and if there is any change without prior notice, please refer to the actual product.
