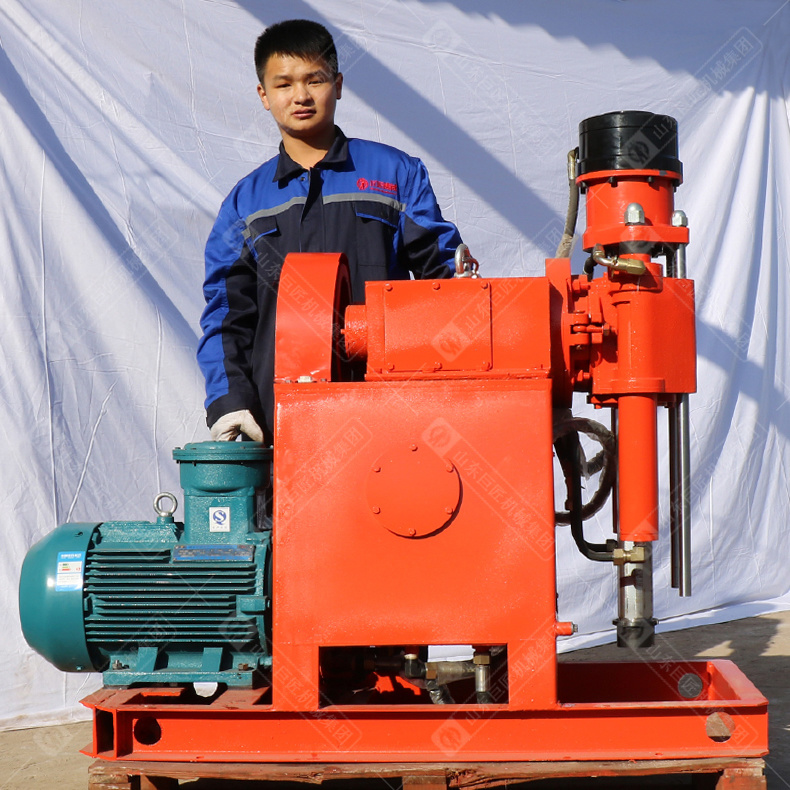

ZLJ-650 Coal Mine Tunnel Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ZLJ-650 Coal Mine Tunnel Drilling Rig
1. Introduction of ZLJ-650 coal mine tunnel drilling rig
ZLJ650 coal mine tunnel drilling rig is mainly used for water exploration, gas exploration, dust-proof water injection and various engineering holes and geological structure holes in coal mines at different angles. The drilling rig adopts mechanical transmission and hydraulic feeding, and has small size, light weight Easy operation and maintenance.
2. Parameters of ZLJ-650 coal mine tunnel drilling rig
Technical parameters
Unit
ZLJ-650
Rated torque
High gear
N.m
210
Middle gear
N.m
380
Low gear
N.m
650
Rated speed
High gear
r/min
270
Middle gear
r/min
150
Low gear
r/min
90
System rated pressure
Mpa
8
System rated flow
L/min
12
Forward force
kN
0-15
Pullout force
kN
0-24
Advance stroke
mm
400
Drilling angle
°
0～360
Drill pipe diameter
mm
42
Winch lifting force
kN
8.5
Drum capacity
m
30
Wire rope diameter
mm
9
Water supply pressure
Mpa
0.6～1.2
Motor model
YBK2-132M-4
Motor power
kW
7.5
Motor voltage
V
380/660
Motor rated current
A
15.6/9
Dimensions (L×W×H)
mm
1300×650×1200
Machine weight
kg
650
Note: The product is constantly improving, and if there is any change without prior notice, please refer to the actual product.
