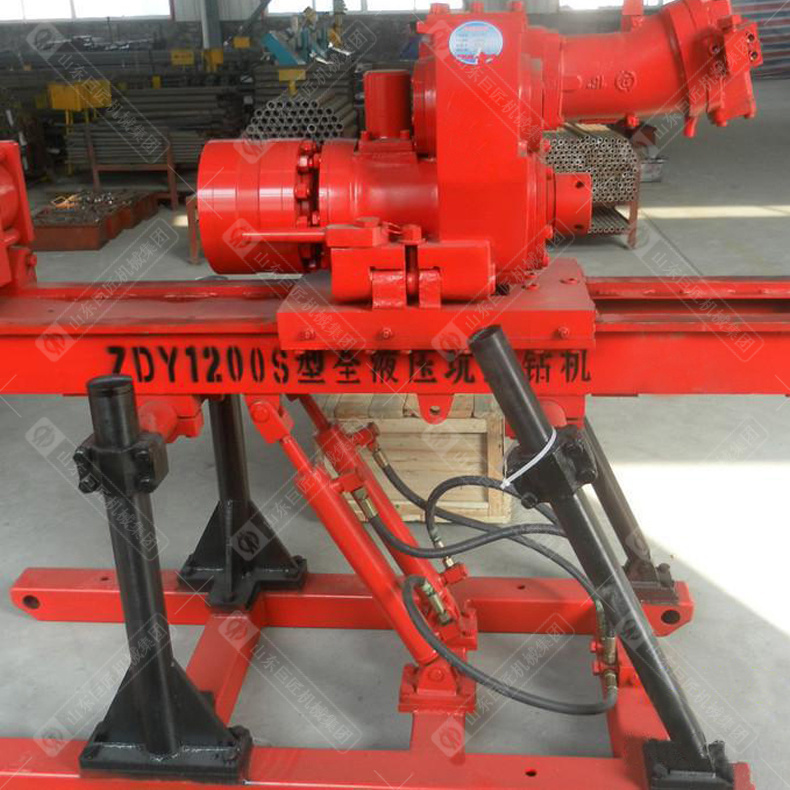

ZDY-1200S Full Hydraulic Tunnel Drilling Rig
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: ZDY-1200S Full Hydraulic Tunnel Drilling Rig
1. Brief introductions of ZDY-1200S full hydraulic tunnel drilling rig
ZDY1200S full hydraulic tunnel drilling rig is a full hydraulic power head structure with wide speed range, large torque and strong lifting and drawing ability. It is suitable for the construction of advanced detection hole, geological exploration hole, gas drainage hole, water injection hole and other engineering holes in coal mine.
ZDY1200S full hydraulic tunnel drilling rig is composed of three main parts, main engine, pump station and control table. It has good disintegration, convenient relocation and transportation. It can be arranged flexibly according to the situation of the site; it has linkage function and simple and flexible operation; it uses double pump confluence system to drill down fast and work efficiency high; the diameter of the power head through hole is large and the replacement of different diameter of the diameter of the drill can use the drill pipes of different diameter. The length of the drill pipe is not limited by the structure size of the drilling rig itself; it is used to support the oil cylinder to adjust the angle of the fuselage to be convenient and labor-saving. At the same time, the support of the fuselage is safe and reliable. The control handle is concentrated on the control table, and the worker can operate in a long distance, so it’s good flexibility and high safety.
2. Specifications of ZDY-1200S full hydraulic tunnel drilling rig
Project
Unit
Parameter
Maximum drilling depth
m
200
Borehole diameter
mm
Ф75
Drilling pipe diameter
mm
Ф42/Ф50
Drilling angle
°
0-±90
Output torque
n.m
350-1200
Ability to feed
kn
36
Ability to pullout
kn
52
Rotating speed
r/min
80-280
Rated advence speed
m/s
0-0.45
Hardness range (protodyakonov scale of hardness)
f≦10
Main engine size
mm
1850*710*1460
Total weight (excluding the drill rod)
kg
1360
Main engine weight
kg
750
Motor power
kw
22
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
