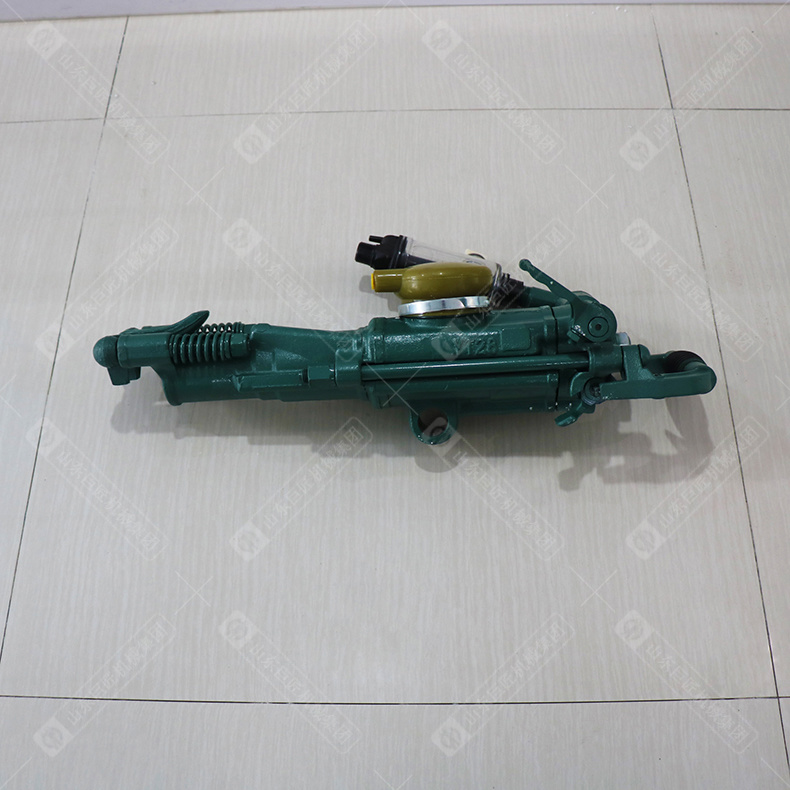

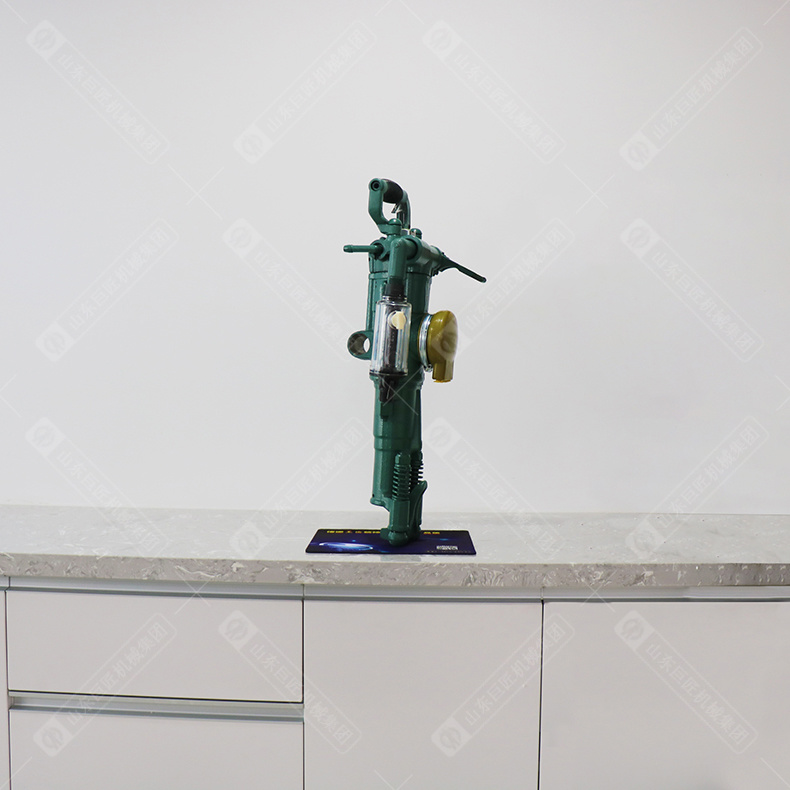

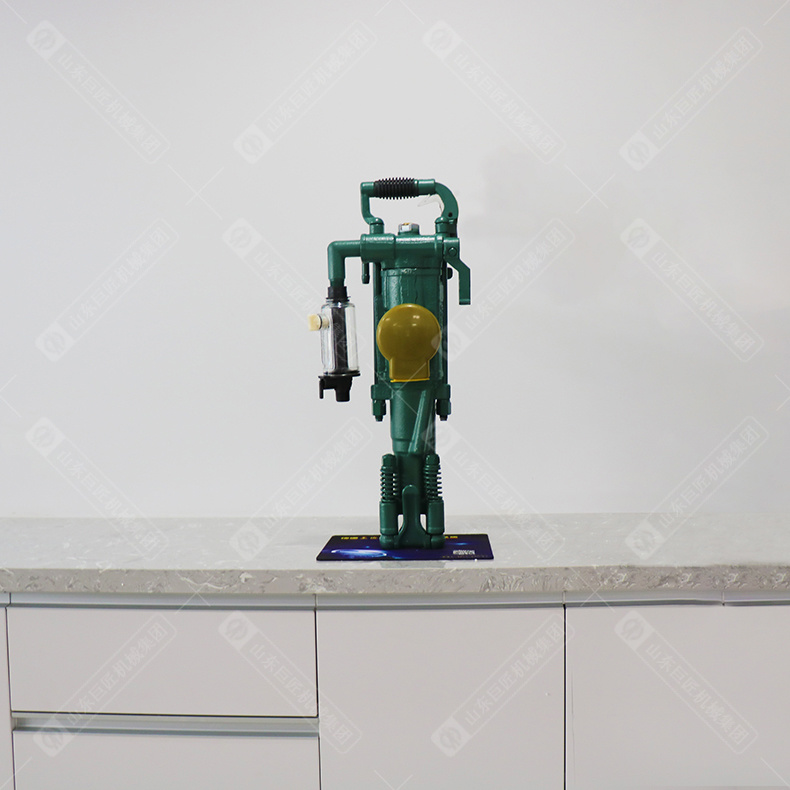

YT28 Air Leg Rock Drill
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: YT28 Air Leg Rock Drill
1. Introduction of YT28 air leg rock drill
YT28 air leg rock drill is a high efficiency rock drilling machine. It is widely used in rock tunneling and drilling blastholes in various rock drilling operations. It is an important machine in stone works such as mining, railway, transportation and water conservancy construction.
YT28 air leg rock drill is used in a wide range of applications. It is suitable for drilling horizontal and inclined blastholes on medium-hard or hard (f=8~18) rocks, and can also drill the boltholes of the top plate vertically upwards. The diameter of the blast hole is generally 32-42 mm, and the effective economic drilling depth can reach 5 meters. This machine can be used with the FT160BD short air leg or FT160BC long air leg according to the section size of the roadway. It can also be installed on the drill or drill stand.
YT28 air leg rock drill is equipped with FY200B oiler with transparent casing, which is convenient for observing oil surface and adjusting oil quantity to ensure good lubrication.
2. Parameters of YT28 air leg rock drill
Specification
Value
Unit
Weight
26
kg
Length
661
mm
Bore diameter
80
mm
Piston stroke
60
mm
Working pressure
0.4-0.63
mpa
Impact frequency
≥36（0.63mpa）
≥35（0.5mpa）
≥28（0.4mpa）
hz
Air consumption
≤82（0.63mpa）
≤58（0.5mpa）
≤52（0.4mpa）
l/s
Impact energy
≥70（0.63mpa）
≥63（0.5mpa）
≥44（0.4mpa）
j
Torque
≥23（0.63mpa）
≥19（0.5mpa）
≥15（0.4mpa）
n·m
Number of revolutions
≥300（0.63mpa）
≥260（0.5mpa）
≥250（0.4mpa）
r/min
Punching speed
≥470（0.63mpa）
≥400（0.5mpa）
≥250（0.4mpa）
mm/min
Air pipe inner diameter
25
mm
Water pipe inner diameter
13
mm
Water pressure
0.3
mpa
Drilling diameter
34-45
mm
Maximum drilling depth
5
m
Operating temperature
﹣30-45
℃
Shank size
H22*108
mm
FY200B type oiler
Weight
1.02
kg
Oil content
200
ml
FT160BC gas leg
Weight
16.9
kg
Length
1800
mm
Advancement
1365
mm
Cylinder inner diameter
65
mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
