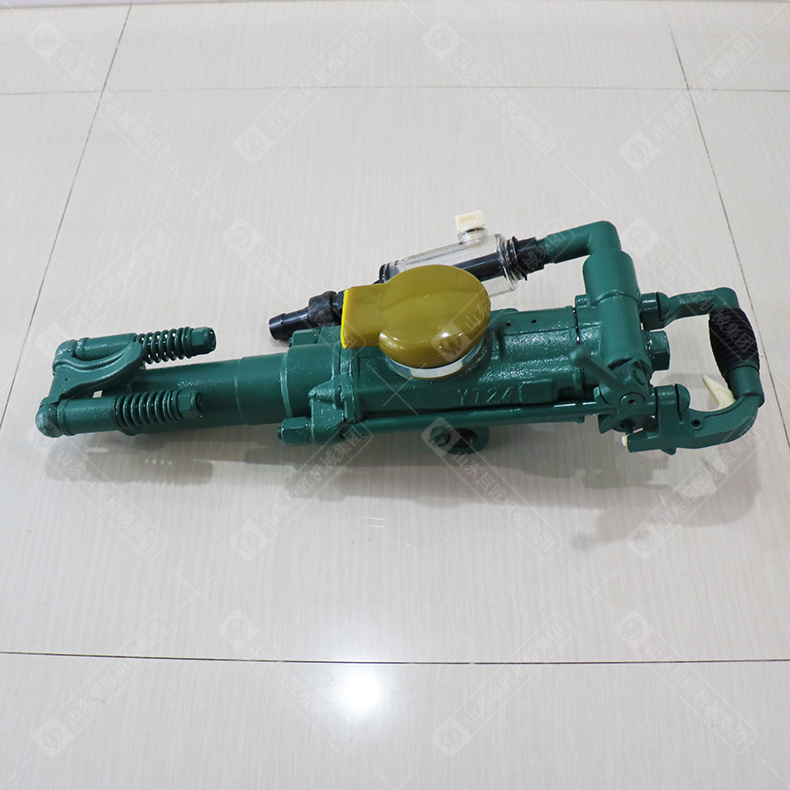

YT24 Air Leg Rock Drill
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: YT24 Air Leg Rock Drill
1. Introduction of YT24 air leg rock drill
YT24 air leg rock drill is a highly efficient rock drilling machine. It is widely used in rock tunneling and drilling blastholes in various rock drilling operations. It is an important machine in stone works such as mining, railway, transportation and water conservancy construction.
YT24 air leg rock drill is used in a wide range of applications. It is suitable for drilling horizontal or inclined blastholes on medium-hard or hard (f=8~18) rocks with a drilling depth of up to 5 meters. This machine can be used with the FT140BD short air leg or FT140B long air leg according to the section size of the roadway. It can also be installed on the drill or drill stand.
2. Parameters of YT24 air leg rock drill
Specification
Value
Unit
Weight
24
kg
Dimensions
678*228*184
mm
Piston diameter
70
mm
Piston stroke
70
mm
Working pressure
0.5-0.63
mpa
Air consumption
≤67（0.63mpa）
≤52（0.5mpa）
l/s
Impact frequency
31
hz
Rotating speed
250
r/min
Air pipe inner diameter
19
mm
Water pipe inner diameter
13
mm
Drilling diameter
34-42
mm
Drilling depth
5
m
Shank size
22*108
mm
FY200B Oil injector
Oil storage
200
ml
Weight
1.02
kg
FT140B type air leg
Weight
15.6
kg
Leg length
1687
mm
Advancement
1250
mm
Cylinder inner diameter
60
mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
