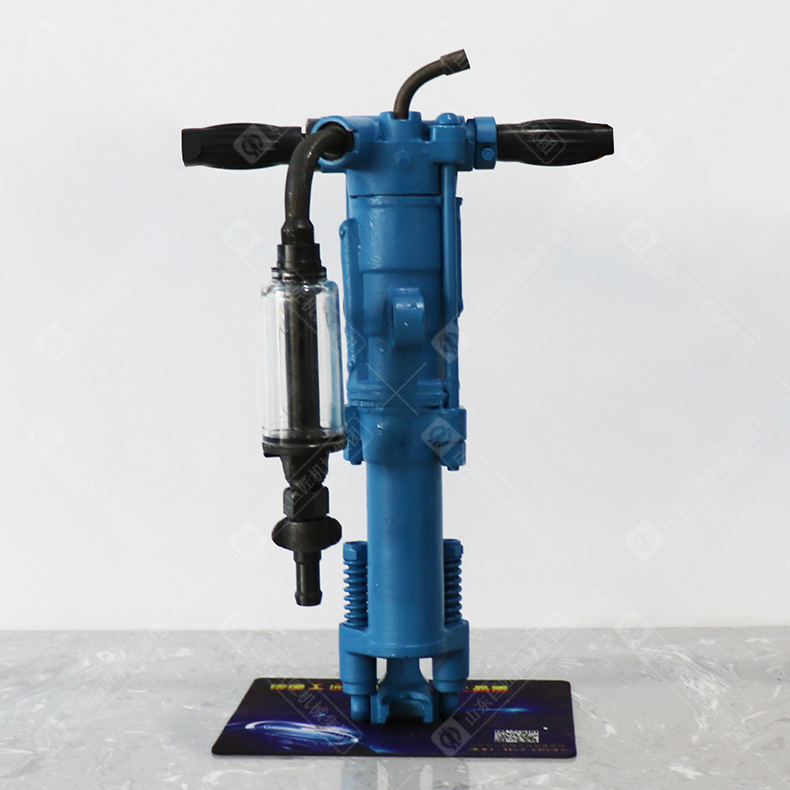

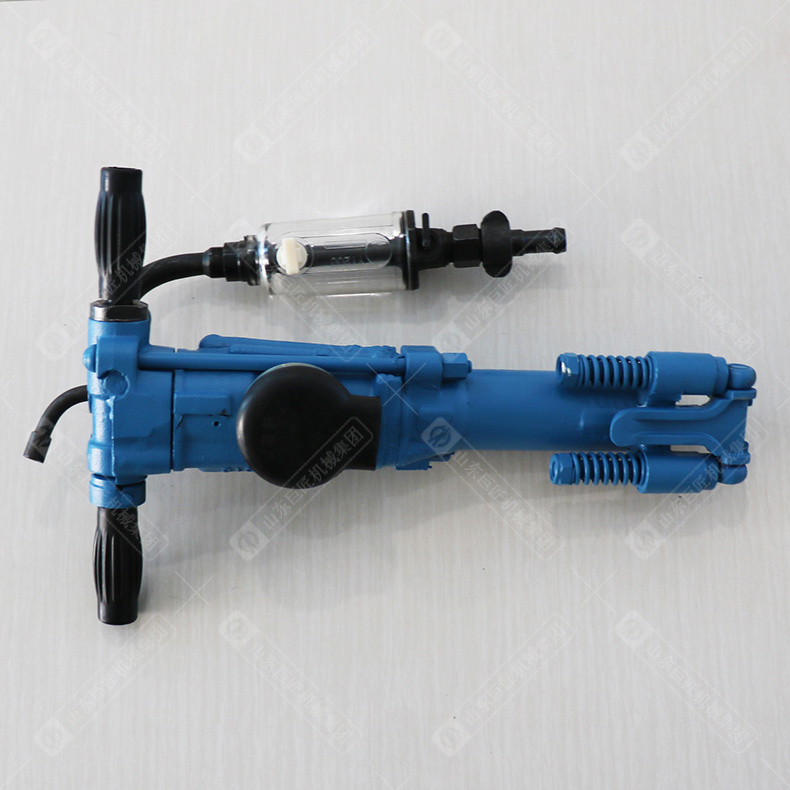

YO18 Hand-held Air Leg Rock Drill
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: YO18 Hand-held Air Leg Rock Drill
1. Introduction of YO18 Hand-held Air Leg Rock Drill
YO18 hand-held air leg rock drill is used for drilling rock blasting and other rock drilling work in quarries, small mines and other engineering constructions. It is suitable for drilling blasting holes below the horizontal and vertical tilting on medium hardness and hard rock. After equipped with FT100 type air leg, it can drill holes of different orientations and angles. The drill hole diameter is 36-42 mm, and the hole depth is 1.5-2 m.
2. Parameters of YO18 Hand-held Air Leg Rock Drill
Specification
Value
Unit
Weight
18
kg
Length
550
mm
Cylinder diameter
58
mm
Piston stroke
45
mm
Air pipe inner diameter
19
mm
Water pipe inner diameter
8
mm
Shank diameter
22*108
mm
Using air pressure 3.9*105Pa/hour：
Air consumption
＜1.2
m³/min
Average rock drilling speed
80
mm
Using air pressure 4.9*105Pa/hour：
Impact energy
24.5
j
Air consumption
≤1.35
m³/min
Average rock drilling speed（F＜14 Bit￠36）
120
mm
FY200 type oiler
Weight
≤1.2
kg
Oil storage
200
ml
FT100 type air leg
Weight
≤11
kg
Propulsion length
810
mm
Bore diameter
52
mm
Leg length
1312
mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
