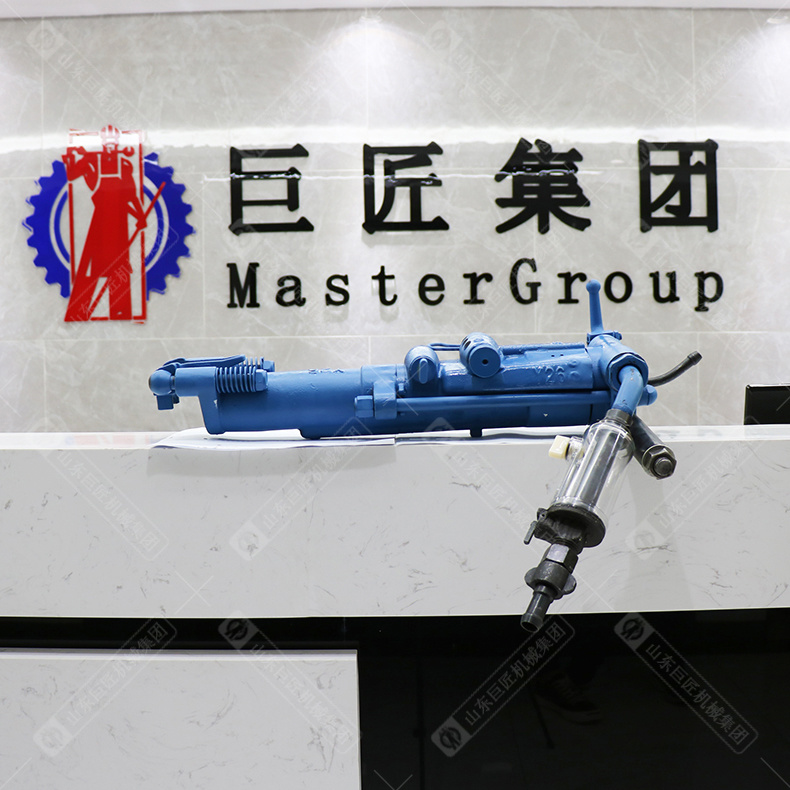

Y26 Hand-held Pneumatic Rock Drill
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: Y26 Hand-held Pneumatic Rock Drill
1. Introduction of Y26 Hand-held Pneumatic Rock Drill
Y26 hand-held pneumatic rock drill is mainly used for drilling and blasting in secondary mines, railways, water conservancy and stone works, and can perform dry and wet rock drilling for medium and hard rock in vertical or inclined.
2. Parameters of Y26 Hand-held Pneumatic Rock Drill
Specification
Value
Unit
Dimensions
650*534*125
mm
Cylinder diameter
65
mm
Piston stroke
70
mm
Working pressure
0.4
mpa
Impact energy
≥30
j
Rock drilling frequency
≥23
hz
Rock drilling gas consumption
≤47
l/s
Idling speed
≥200
r/min
Noise
≤124
dB（A）
Working water pressure
0.3-0.35
mpa
Air pipe inner diameter
19
mm
Water pipe inner diameter
13
mm
Punch diameter
34-42
mm
Hole depth
5
m
Shank size
22*108
mm
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
