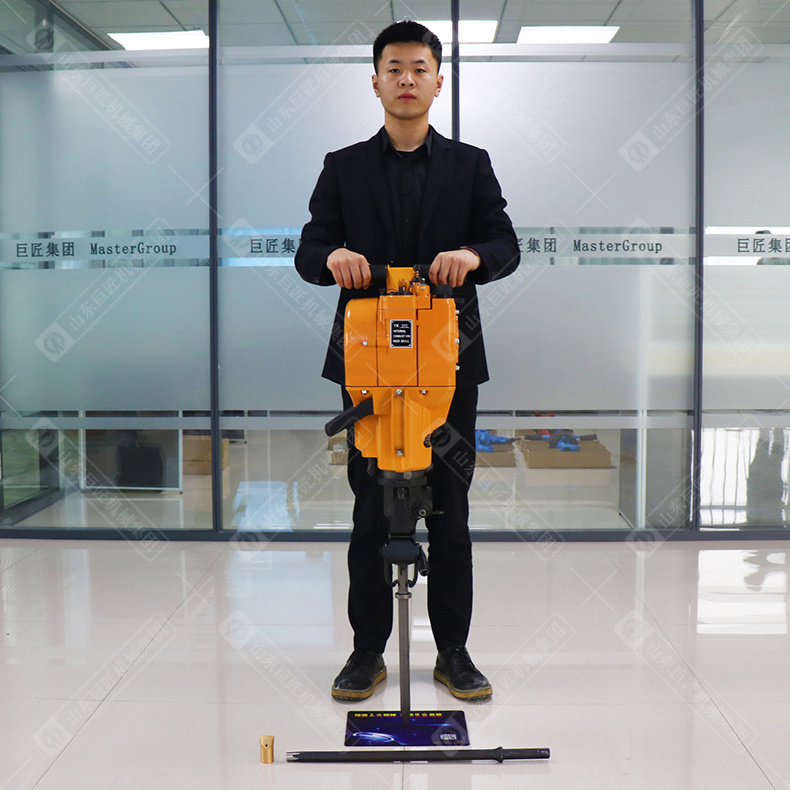

YN27C Internal Combustion Rock Drill
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: YN27C Internal Combustion Rock Drill
1. Introduction of YN27C internal combustion rock drill
The YN27C internal combustion rock drill has various functions such as mining, drilling, building construction, geological exploration, cement pavement, asphalt pavement and other functions such as splitting, crushing, compacting and shovel. It is widely used in mining, road construction, quarrying, construction, railway tamping, geological survey, national defense engineering, etc.
2. Features of YN27C internal combustion rock drill
You only need to move the handle as required to complete the drilling or crushing operation.
The machine is easy to operate, saves time and labor, and has the characteristics of fast cutting speed and high efficiency.
The machine has reached the first-class level of similar products and can be completely interchanged with international similar products.
The drilling can be vertically downwards, horizontally upwards less than 45°, and vertically drilled up to six meters.
The weight of the main machine is only 27 kg. Only one person can operate it. It is easy to carry. It is suitable for areas with high mountains, no power supply, no wind pressure equipment and temporary projects with large mobility.
This machine has wide adaptability in both high mountains and flat land, regardless of the extreme heat of 40° or the cold region of minus 40°.
This machine adopts export packaging, and all the indicators meet the export standards. This product is exempt from inspection and does not require commodity inspection for export. Since only gasoline needs to be added to work, no other auxiliary equipment is needed.
This machine is suitable for mining of various mines such as iron ore, copper mine, nickel mine, lead-zinc mine, gold mine, gemstone mine, granite, bluestone and jade.
3. Parameters of YN27C internal combustion rock drill
Model
YN27C
Host weight
27kg
Engine type
Single cylinder air-cooled two-stroke gasoline engine
Carburetor type
No float
Ignition method
Thermistor contactless system
Engine Displacement
185cm³
Engine load speed (measured when chiseling five holes)
≥2450r/min
Drill rod idle speed
≥200r/min
Shank size drill rod tail
Hexagon 22x108mm
Deepest hole drilling depth
≥6m
Fuel tank volume
≥1.14L
Punching speed
≥250mm/min
Gasoline and lubricating oil mixing ratio (by volume)
12:1
Spark plug electrode gap
0.5～0.7mm
Fuel consumption rate (measured when chiseling five holes)
≤0.12L/M
Impact energy
≥25J
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
