YPB Series Static Explosion Hydraulic Splitting Rod
Keywords:
Categories：
产品描述
- 产品描述
-
- Commodity name: YPB Series Static Explosion Hydraulic Splitting Rod
1. Introduction of YPB series static explosion hydraulic splitting rod

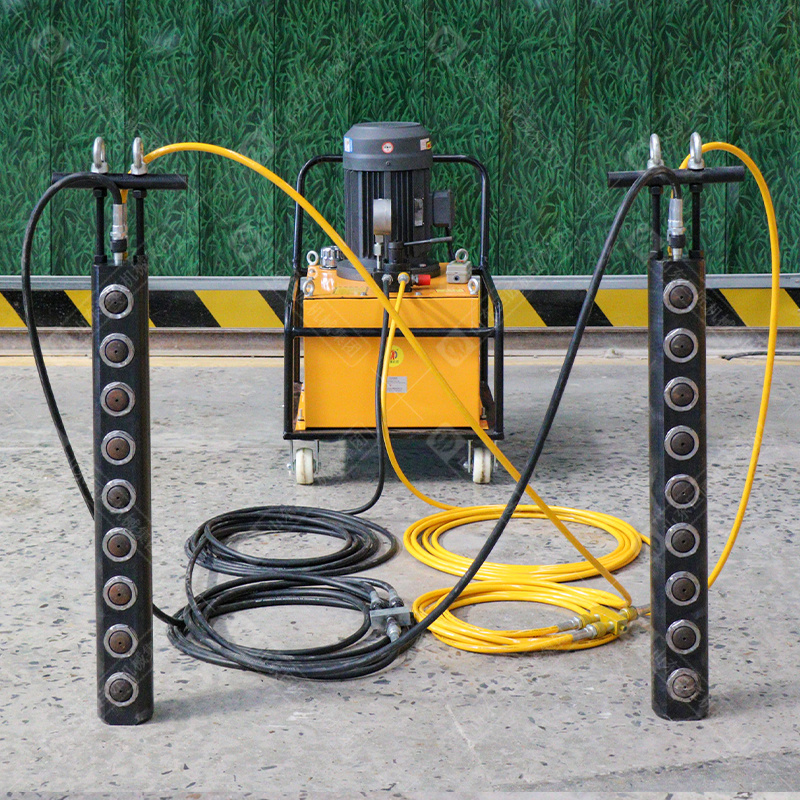

The static explosion hydraulic splitting equipment of Shandong Master Machinery Group is composed of hydraulic pump station, flow divider, high-pressure tubing and splitting rod. The equipment is now widely used in open-pit quarrying, roadway excavation, concrete demolition and demolition operations in narrow sites and other fields. According to the different power of hydraulic pump station, the static explosion hydraulic splitting equipment can be divided into diesel station type and motor station type. When the hydraulic pump station pumps oil out, the plunger of the hydraulic splitting rod is pushed out, and the rock is forced from the inside out, destroying the internal structure of the rock and achieving the purpose of rock splitting.
2. Features of YPB series static explosion hydraulic splitting rod
（1）Compared with the traditional operation method, the hydraulic splitting rod has the advantages of simple operation, strong controllability, high efficiency, large splitting force, low cost, safety and environmental protection, dust and noiseless.
（2）Adopt modular design, easy to assemble and disassemble.
（3）Small size, light weight, easy to carry, and can be dismantled in a narrow place.
（4）The hydraulic pump station is easy to start, flexible in operation, strong in power and reliable in performance.
（5）Hydraulic tubing is resistant to ultra-high pressure, has good toughness and is not easy to burst.
（6）The hydraulic splitting rod is made of special steel, the rod body is wear-resistant, impact-resistant, and durable.
（7）The plunger jack has strong splitting force, anti-extrusion, not easy to damage, and low maintenance cost.
3. Parameters of YPB series static explosion hydraulic splitting rod
Model
YPB-90
YPB-110
YPB-130
YPB-150
YPB-180
YPB-220
Required aperture (mm)
90
110
130
150
180
220
Split rod length（mm）
650
850
850
850
850
1000
Required hole depth (mm)
850
1050
1050
1050
1050
1300
Splitting rod weight (kg)
28
55
79
104
128
200
Number of plugs (pc)
8
9
8
7
6
5
Splitting force of single rod (T)
450
560
650
760
850
960
Equipped with pump station pressure (Mpa)
120
120
120
120
120
120
Motor station
Power (kw)
4
4
7.5
7.5
7.5/11
7.5/11
Diesel station
Horsepower (hp)
8
8
18
18
18
18
Note: The product is constantly improving, if there is any change without notice, please refer to the actual product.
